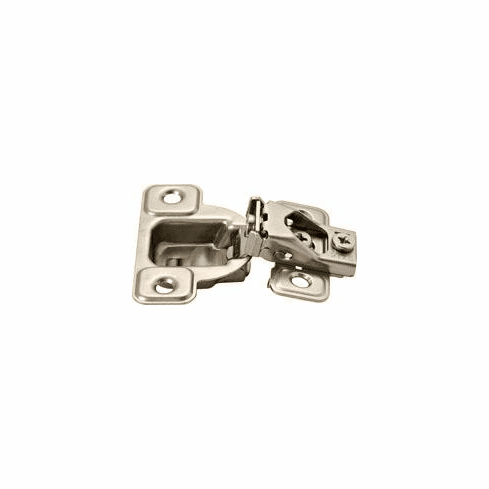

Hafele 343.62.502 Concealed Hinge, Salice Face Frame 3 Cam, 106 degree Opening Angle, Self Close 5/8" Overlay, Salice CSP3599XR Screw-on

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.62.502

  Product Title: Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close, 5/8" Overlay, Salice CSP3599XR Screw-on

  Category: Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close,

  Item Details …

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 106°

  - Cup drilling depth : 11.00 mm

  - Drilling depth : Hinge cup: 7/16"

  - Cup drilling Ø : 35.00 mm

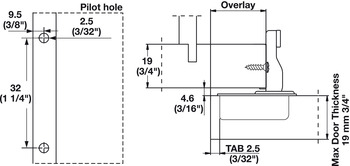

  - Drilling pattern : 45/9.5


  Additional Information …

  Additional overlays available.

• Data Sheet

  Detailed Data Sheet

• Specifications

  Hafele 343.62.502, 343-62-502, 34362502, 343.62


  Specifications/Hafele Catalog - Page# FC9.69: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
