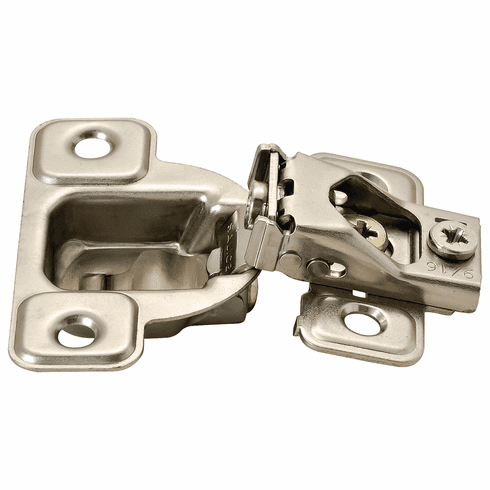

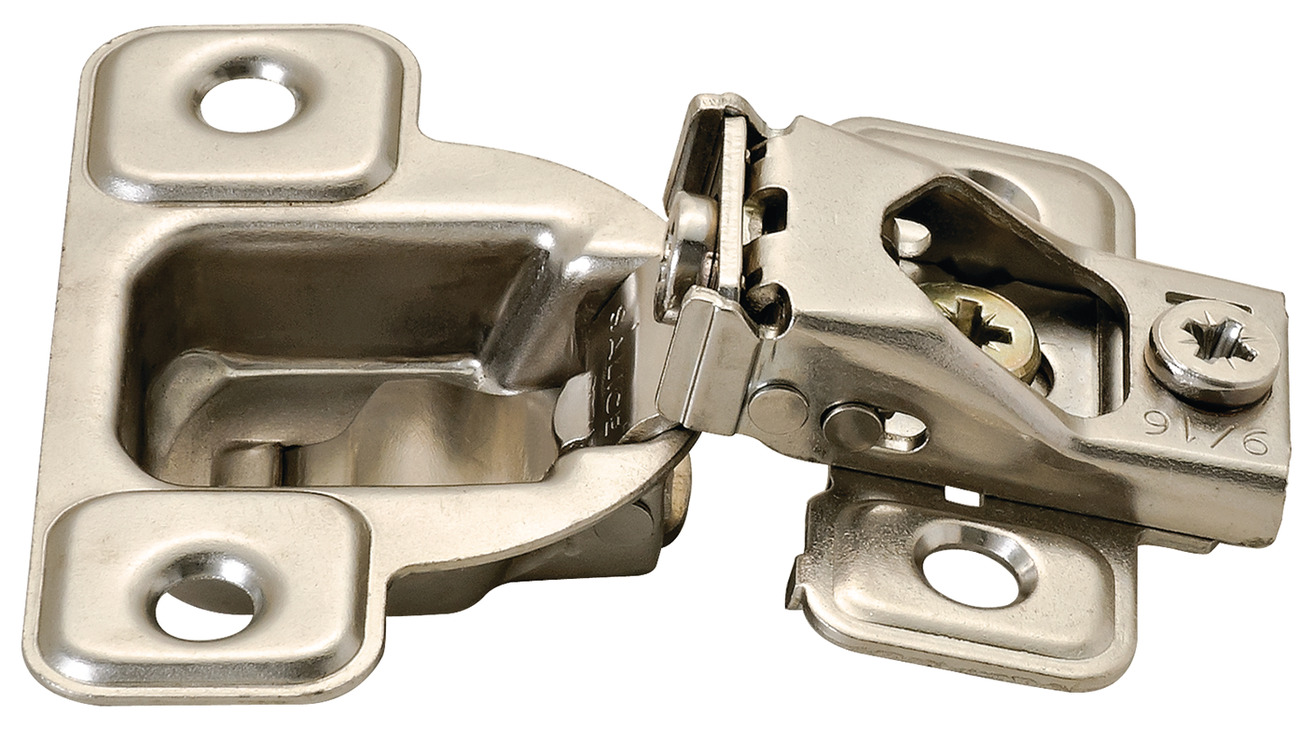

Hafele 343.62.500 Concealed Hinge, Salice Face Frame 3 Cam, 106 degree Opening Angle, Self Close 1/2" Overlay, model CSP3799XR Screw-on

Product Information

• Description

  Hafele 343.62.500 Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close
  1/2" Overlay, model CSP3799XR Screw-on



  Opening angle : 106 °

  Features : Zero door protrusion

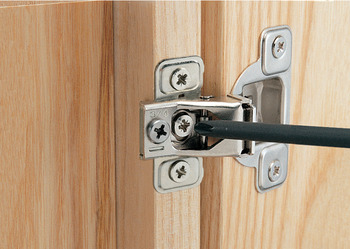

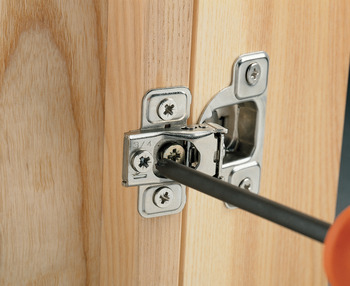

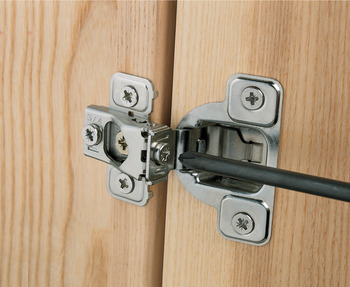

  Adjustment : 3-way adjustment with wing plate

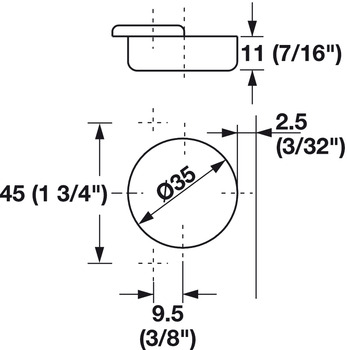

  Drilling depth : Hinge cup: (7/16") 11 mm

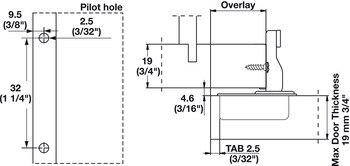

  Tab : Fixed at (3/32") 2.5 mm

  Type of closing : Self-close

  Drilling Pattern : 45/9.5

  Material : Steel

  Finish : Nickel

  Note :

  Additional overlays available.







• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.71-9.73.pdf

  Hafele 343.62.500, 343-62-500, 34362500, 343.62


  Specifications/Hafele Catalog - Page# FC9.69: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
