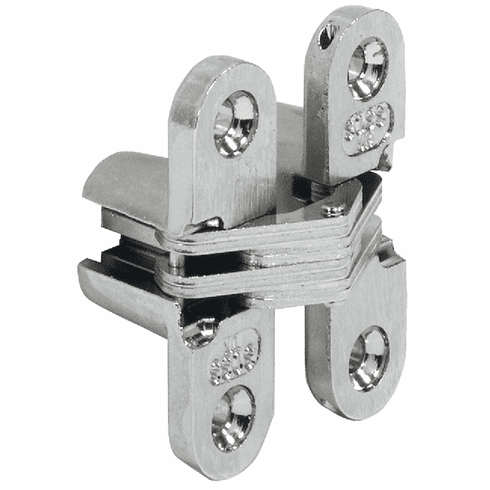

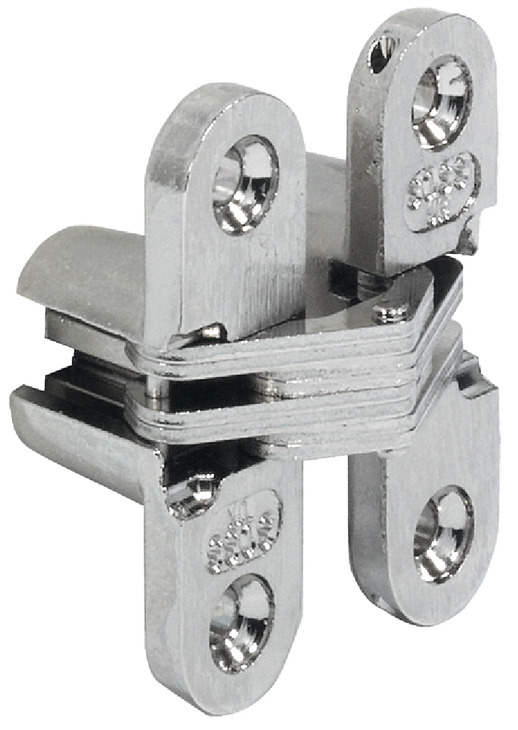

Hafele 341.07.781 Concealed Hinge, Soss, Invisible Hinge, 180 degree Opening Angle Wood Thickness 51+mm, SOSS #220, Satin Chrome

Product Information

• Description

  Hafele 341.07.781 Concealed Hinge, Soss, Invisible Hinge, 180° Opening Angle
  Wood Thickness 51+mm, SOSS #220, Satin Chrome



  Opening angle : 180°

  Material : Case: Zinc die-cast, Linkage: Steel

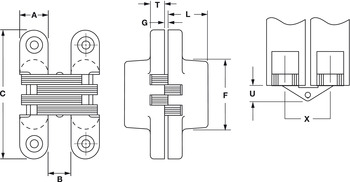

  A : 34.9

  B : 27

  C : 139.7

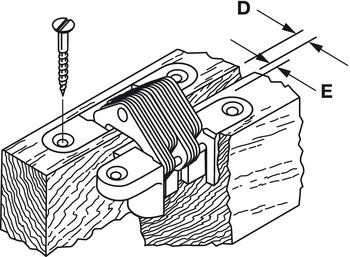

  D : 12.7

  E : 7.1

  F : 74.6

  G : 1.6

  L : 49.2

  T : 11.9

  U : 17.5

  X : 17.5





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.67-9.67.pdf

  Hafele 341.07.781, 341-07-781, 34107781, 341.07
