Hafele 341.07.772 Concealed Hinge, Soss, Invisible Hinge, 180 degree Opening Angle Wood Thickness 45-50mm SOSS #218, Satin Chrome

Product Information

• Description

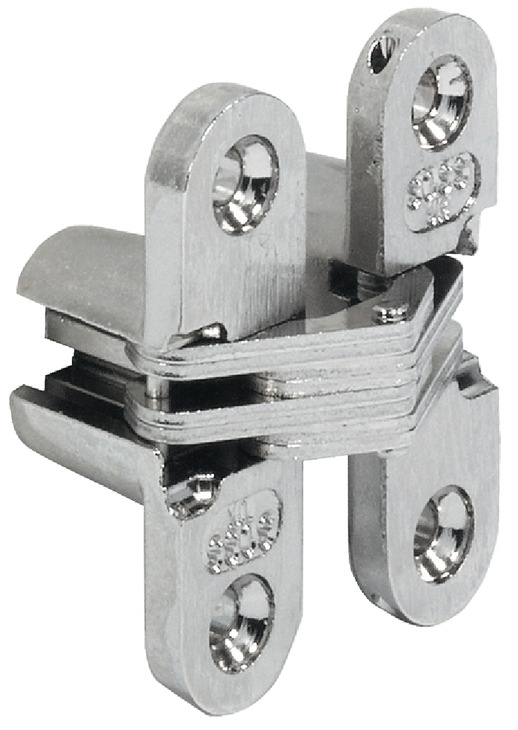

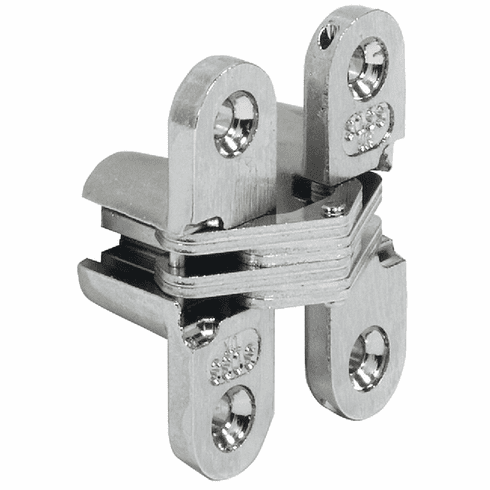

  Hafele 341.07.772 Concealed Hinge, Soss, Invisible Hinge, 180° Opening Angle
  Wood Thickness 45-50mm SOSS #218, Satin Chrome



  Opening angle : 180°

  Material : Case: Zinc die-cast, Linkage: Steel

  A : 28.6

  B : 22.2

  C : 117.5

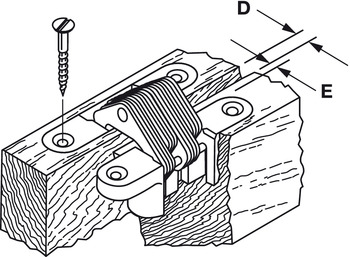

  D : 9.5

  E : 6.4

  F : 61.9

  G : 1.6

  L : 41.7

  T : 10.3

  U : 13.5

  X : 13.5





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.67-9.67.pdf

  Hafele 341.07.772, 341-07-772, 34107772, 341.07
