Hafele 341.07.754 Concealed Hinge, Soss, Invisible Hinge, 180 degree Opening Angle Wood Thickness 29-31mm, SOSS #212, Satin Chrome

Product Information

• Description

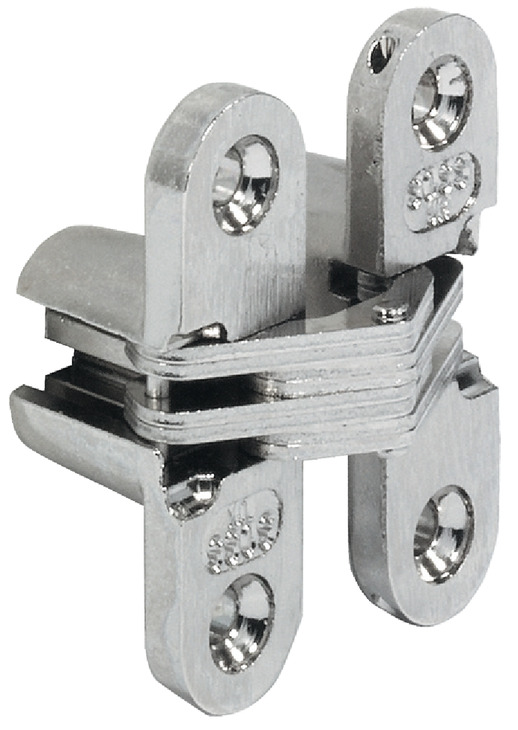

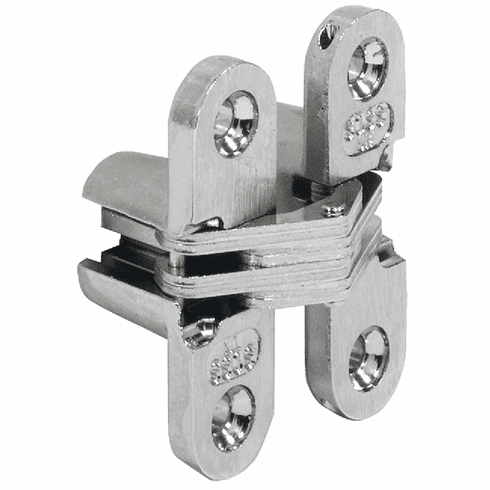

  Hafele 341.07.754 Concealed Hinge, Soss, Invisible Hinge, 180° Opening Angle
  Wood Thickness 29-31mm, SOSS #212, Satin Chrome



  Opening angle : 180°

  Material : Case: Zinc die-cast, Linkage: Steel

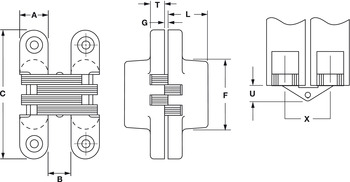

  A : 19

  B : 13.5

  C : 95.3

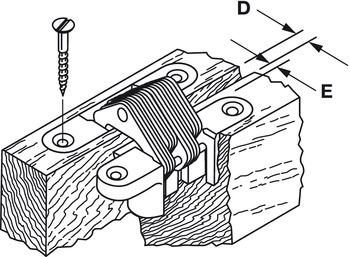

  D : 4

  E : 4.8

  F : 52.4

  G : 1.2

  L : 27.4

  T : 9.5

  U : 10.3

  X : 32.5





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.67-9.67.pdf

  Hafele 341.07.754, 341-07-754, 34107754, 341.07
