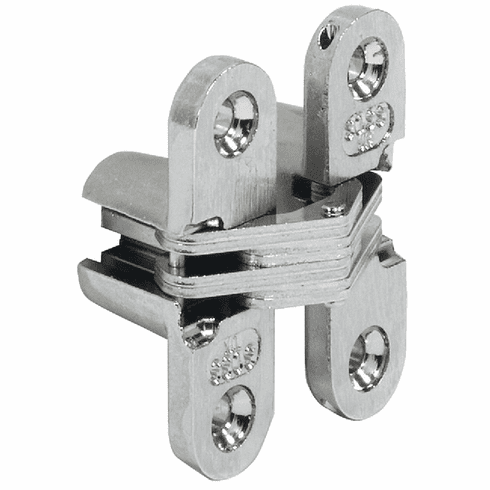

Hafele 341.07.745 Concealed Hinge, Soss, Invisible Hinge, 180 degree Opening Angle Wood Thickness 26-28mm SOSS #208, Satin Chrome

Product Information

• Description

  Hafele 341.07.745 Concealed Hinge, Soss, Invisible Hinge, 180° Opening Angle
  Wood Thickness 26-28mm SOSS #208, Satin Chrome



  Opening angle : 180°

  Material : Case: Zinc die-cast, Linkage: Steel

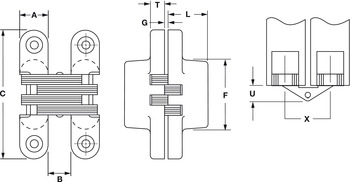

  A : 15.9

  B : 11.5

  C : 69.9

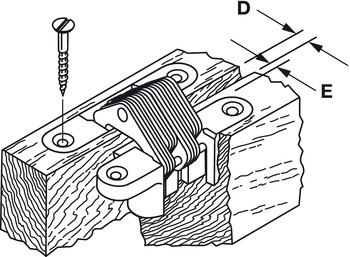

  D : 3.6

  E : 4

  F : 34.1

  G : 1.2

  L : 23

  T : 7.1

  U : 7.9

  X : 27.4





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.67-9.67.pdf

  Hafele 341.07.745, 341-07-745, 34107745, 341.07
