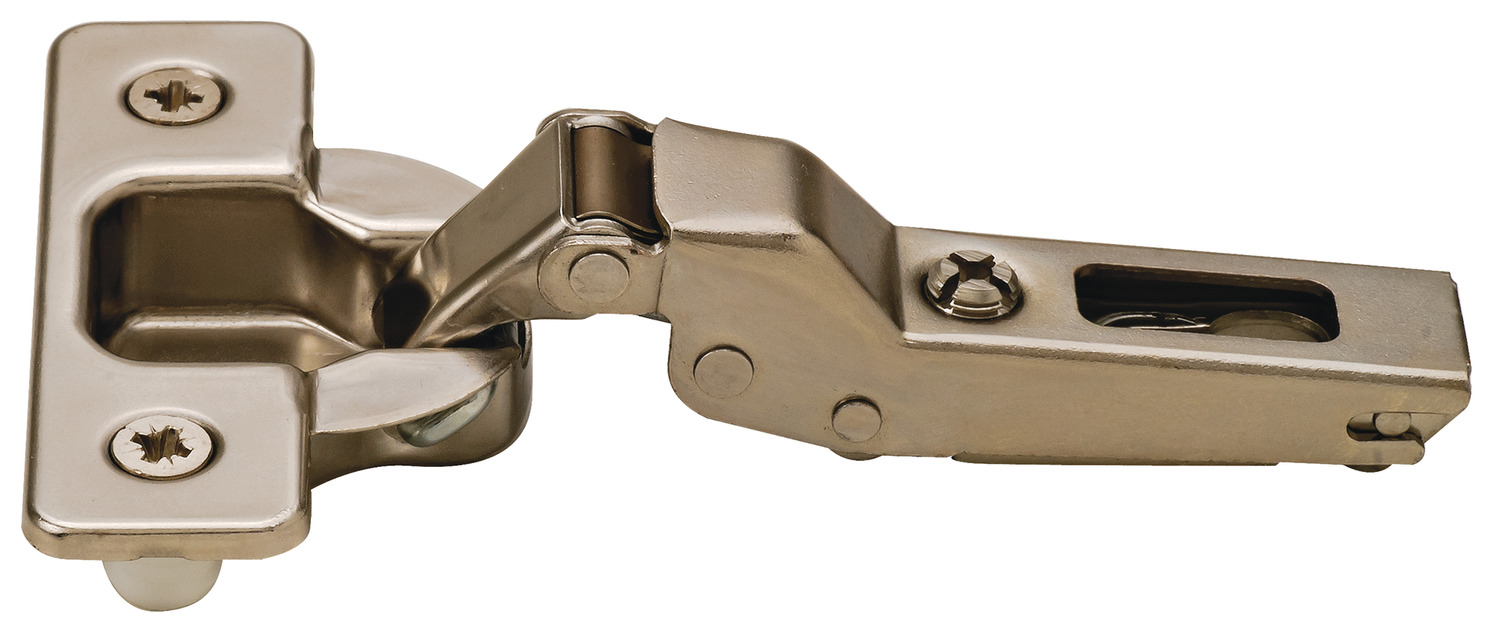

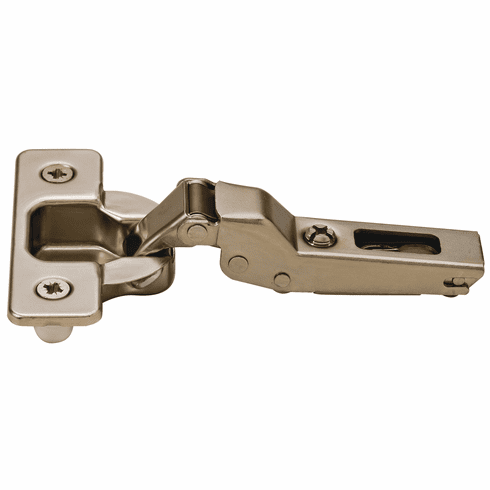

Hafele 329.17.561 Concealed Hinge, Salice 200 Series, 110 degree Opening Angle, Half Overlay Self Close, Dowel Mounting, Model C2R6G99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.561

  Product Title: Concealed Hinge, Salice 200 Series, 110° Opening Angle, Half Overlay, from interior width 70 mm, Self Close, Dowel Mounting, Model C2R6G99

  Category: Concealed Hinge, Salice 200 Series, 110° Opening Angle, Half Overlay, from interior width 70 mm

  Item Details …

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 110°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

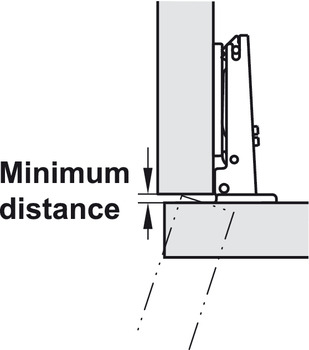

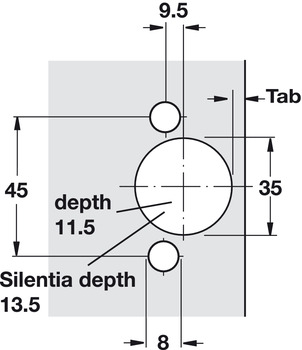

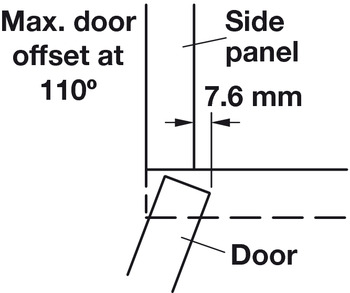

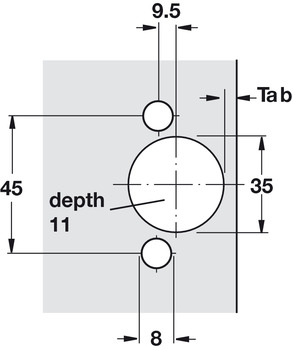

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM
