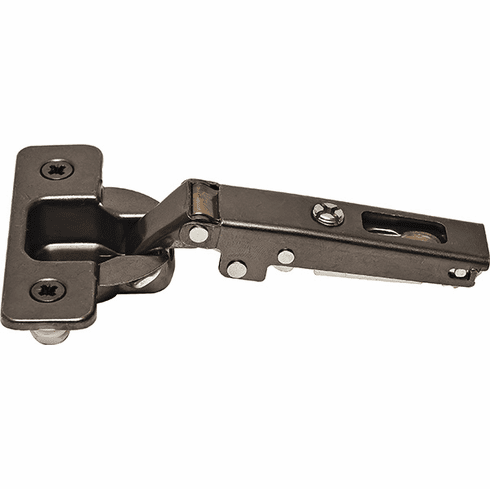

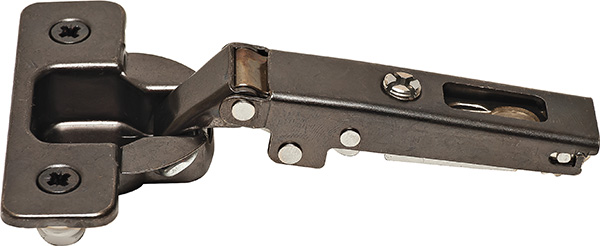

Hafele 329.17.559 Concealed Hinge, Salice 200 Series/700 Series, 110 degree Opening Angle, Full Overlay, Titanium finish Press-fit, model C2R6A66

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.559

  Product Title: Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, Full Overlay, Titanium finish, Press-fit, model C2R6A66

  Category: Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, Full Overlay, Titanium finish,

  Item Details …

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Steel

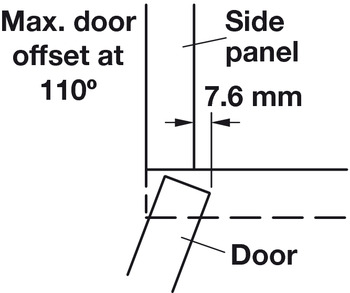

  - Opening angle : 110°

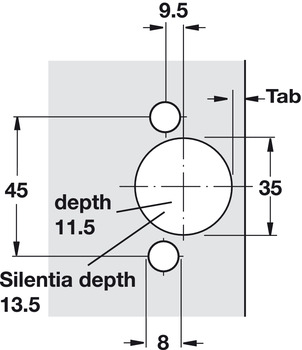

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.20



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.20-9.23.pdf

  Hafele 329.17.559, 329-17-559, 32917559, 329.17


  Specifications/Hafele Catalog - Page# FC9.23: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Clip Face Frame Mounting Plate, Salice, Titanium Finish, Screw-Mounted
  • Flange Cover Cap, for Salice concealed hinges
  • Euro Screw, Salice, For Plates
