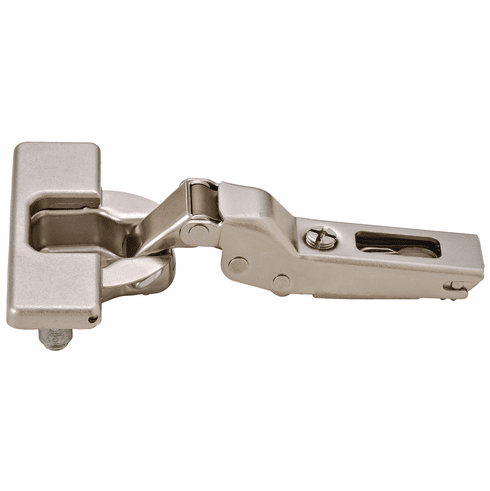

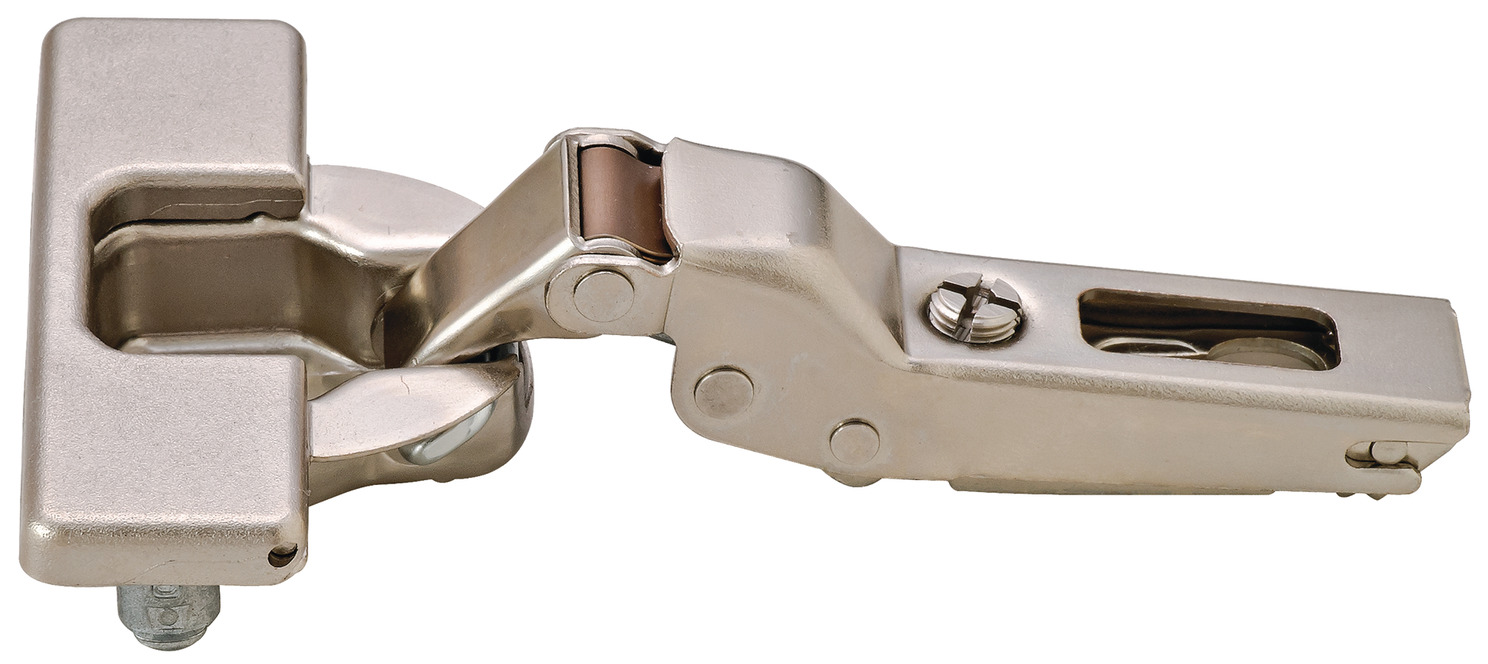

Hafele 329.17.352 Concealed Hinge, Salice 200 Series, 110 degree Opening Angle, Half Overlay Self close, Logica mounting, C2J6G99 Model

Product Information

• Description

  Hafele 329.17.352 Concealed Hinge, Salice 200 Series, 110° Opening Angle, Half Overlay
  Self close, Logica mounting, C2J6G99 Model

  With automatic closing spring

  Material : Steel cup and hinge arm

  Finish : Nickel plated

  Installation : hinge attaches to door without tools

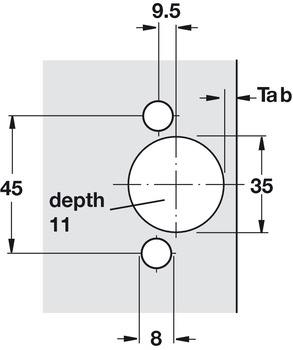

  Drilling depth : Hinge cup 11

  Adjustment : Side adjustment from -1.5 to +4.5 mm
  height adjustment from -2 to +2 mm
  depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to 2.8 mm

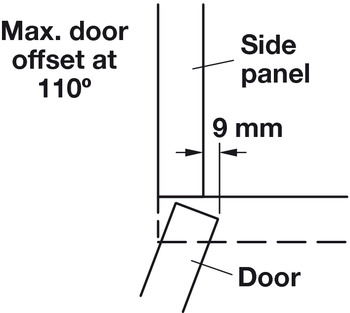

  Opening angle : 110

  For door thickness : (5/8 - 1") 16 - 26 mm

  Tab : 3 - 6 mm



  Optional items:
  Hinge arm cover plate
  Cup cover cap


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.20-9.23.pdf

  Hafele 329.17.352, 329-17-352, 32917352, 329.17


  Specifications/Hafele Catalog - Page# FC9.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
