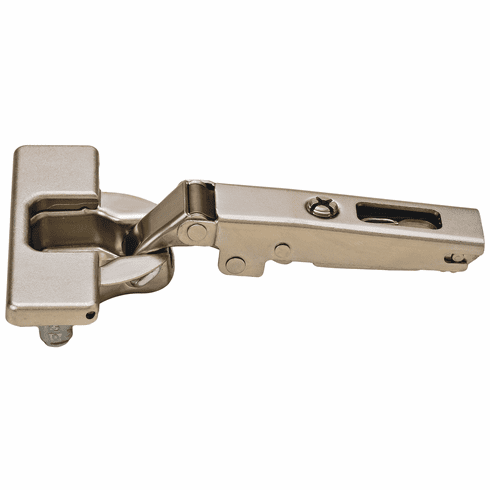

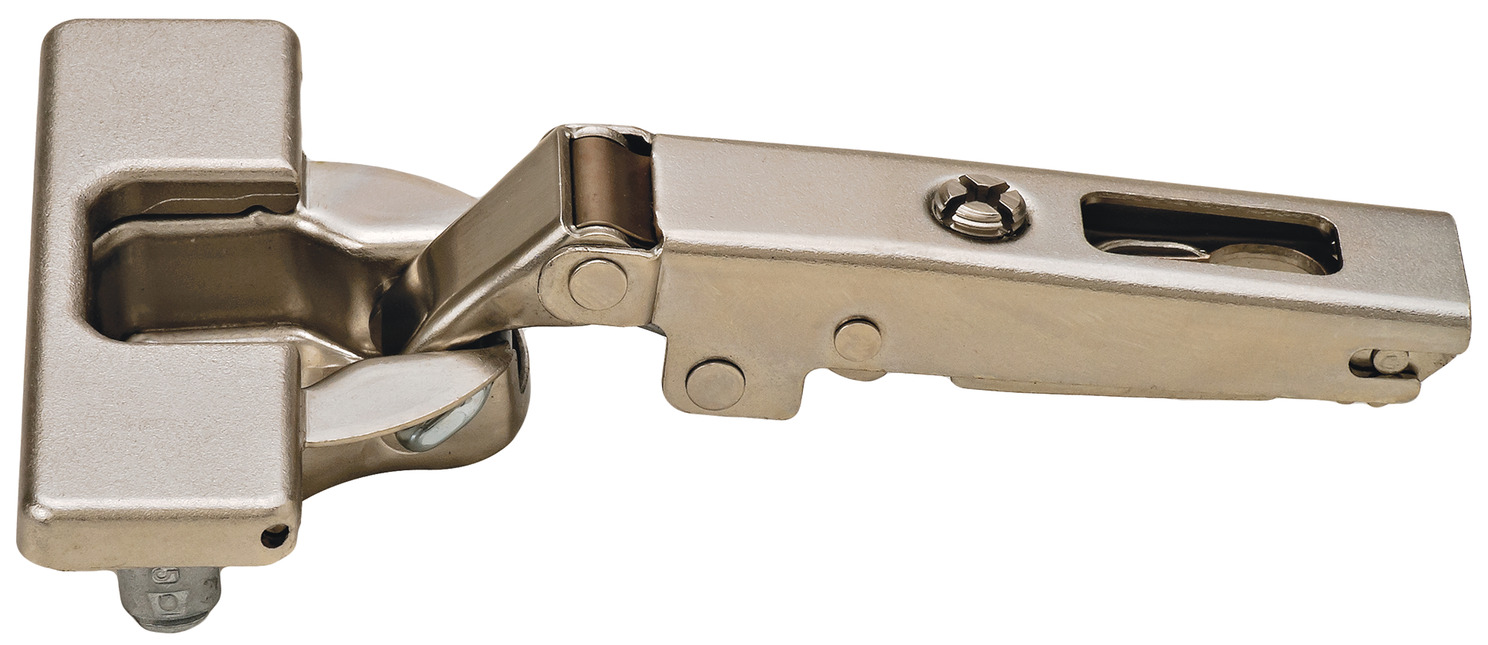

Hafele 329.17.350 Concealed Hinge, Salice 200 Series, 110 degree Opening Angle, Full Overlay, Nickel plated For wooden doors up to 26 mm, Self-close, logica mounting, model C2J6A99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.350

  Product Title: Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated, For wooden doors up to 26 mm, Self-close, logica mounting, model C2J6A99

  Category: Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated, For wooden doors up to 26 mm

  Item Details …

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

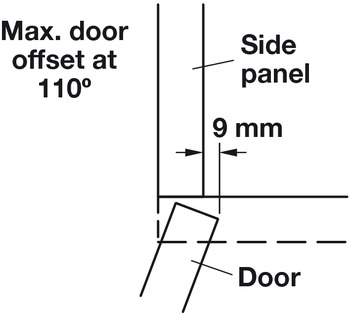

  - Opening angle : 110°

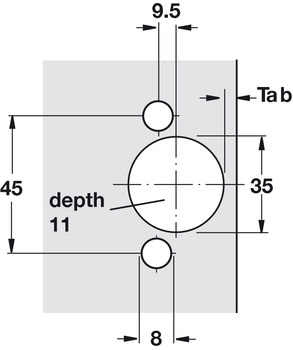

  - Cup drilling depth : 11.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Hinge attaches to door without tools

  - Order reference

  - Drilling pattern 45/9.5 available on request

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.20-9.23.pdf

  Hafele 329.17.350, 329-17-350, 32917350, 329.17


  Specifications/Hafele Catalog - Page# FC9.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
