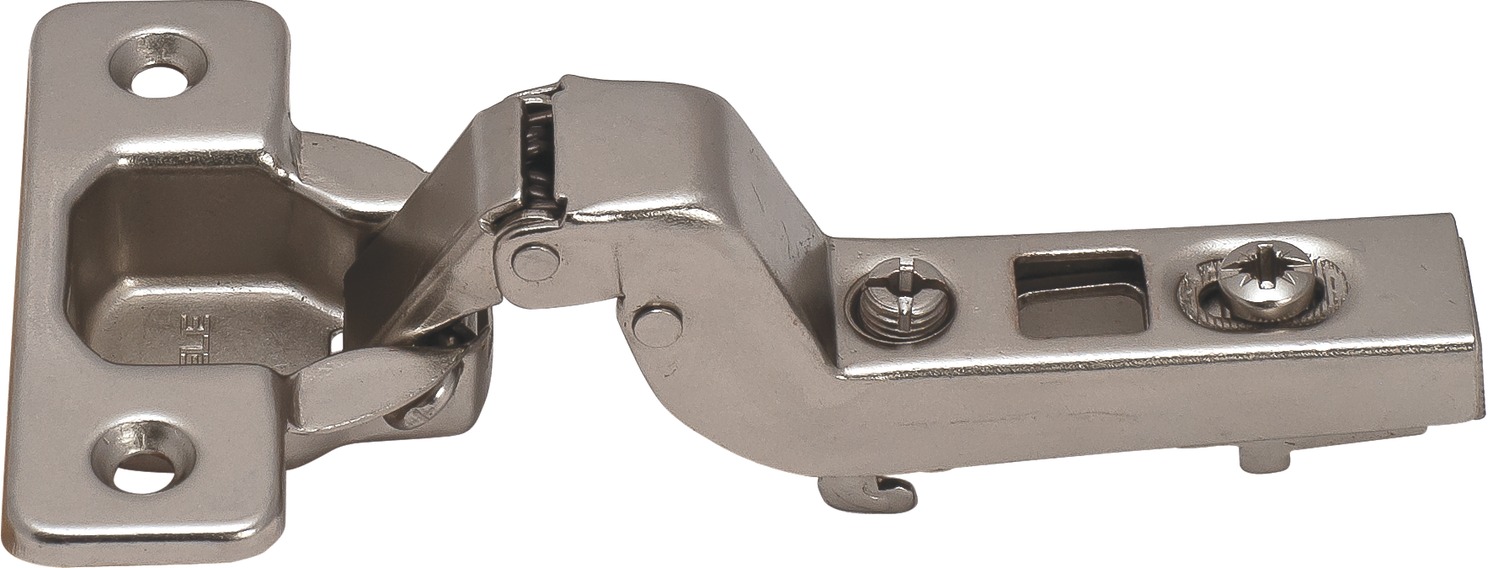

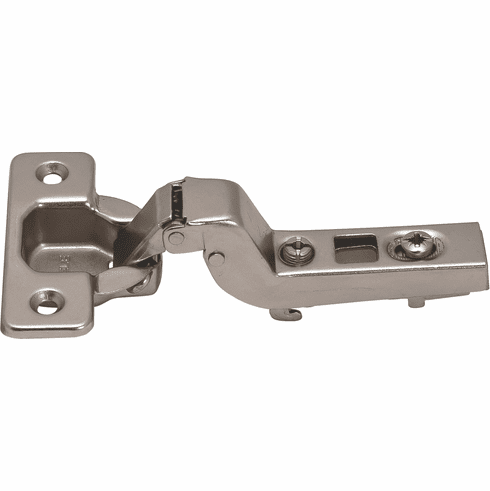

Hafele 315.03.502 Clip-On Hinge, Opening Angle 110 degree, Inset Overlay Self-Close

Product Information

• Description

  Hafele 315.03.502 Clip-On Hinge, Opening Angle 110°, Inset Overlay
  Self-Close



  Overlay : Inset

  For door thickness : (9/16 - 13/16") 14 - 20 mm

  For panel thickness : Side: From (5/8") 16 mm

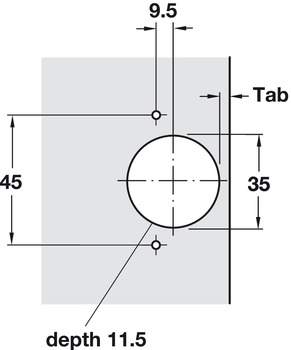

  Tab : 3 - 7 mm

  Mounting : Screw-mounted

  Material : Steel

  Finish : Nickel-plated



  Optional items:
  Mounting Plate, Flanged, for Clip-On Hinges
  Mounting Plate. Face Frame, for Clip-On Hinges
  Mounting Plate, Flanged, for Clip-On Hinges, with Euro Mounting Screws
  Mounting Plate, with 10 mm Screws, for Clip-On Hinges
  Mounting Plate, for Clip-On Hinges


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.60-9.60.pdf

  Hafele 315.03.502, 315-03-502, 31503502, 315.03
