Description

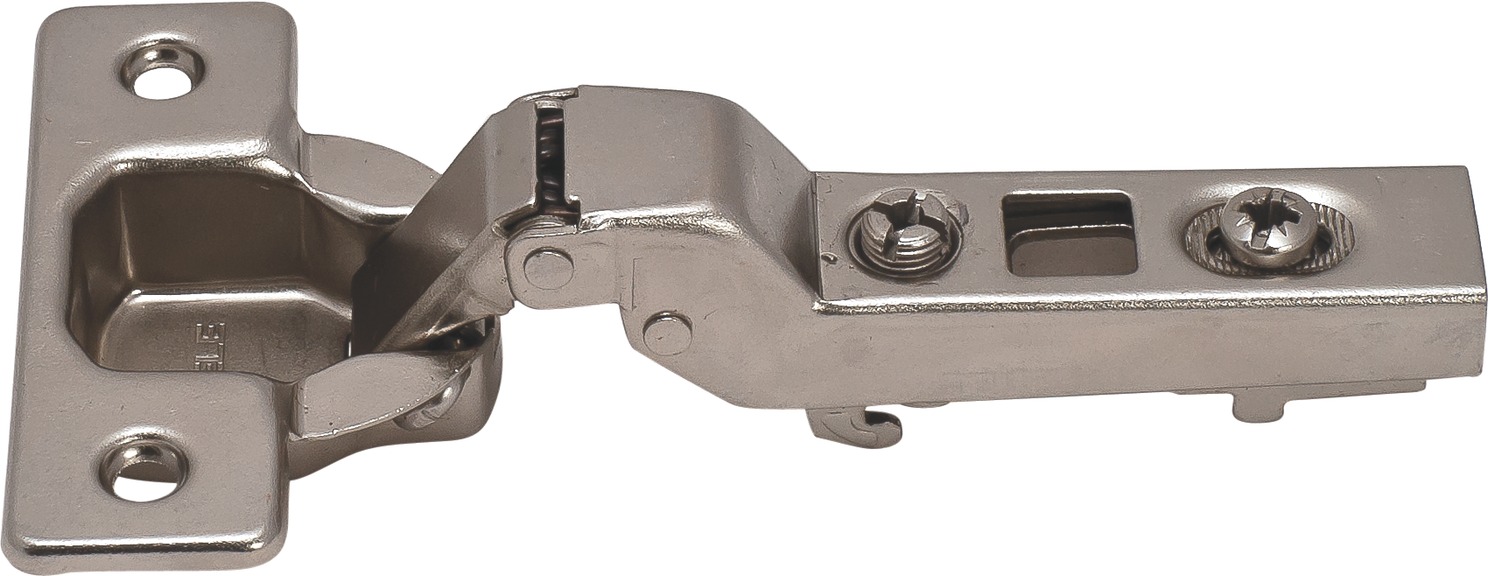

Hafele 315.03.501 Clip-On Hinge, Opening Angle 110°, Half Overlay
Self-CloseOpening angle : 110 ° Overlay : Half For door thickness : (9/16 - 13/16") 14 - 20 mm For panel thickness : Side: From (5/8") 16 mm Tab : 3 - 7 mm Mounting : Screw-mounted Material : Steel Finish : Nickel-plated
Optional items:
Mounting Plate, Flanged, for Clip-On Hinges
Mounting Plate. Face Frame, for Clip-On Hinges
Mounting Plate, Flanged, for Clip-On Hinges, with Euro Mounting Screws
Mounting Plate, with 10 mm Screws, for Clip-On Hinges
Mounting Plate, for Clip-On HingesSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_9.60-9.60.pdfHafele 315.03.501, 315-03-501, 31503501, 315.03 Specifications/Hafele Catalog - Page# FC9.58:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Hinges & Stays Catalog
Return to: All Hafele CatalogsDownload
