Hafele 315.02.500 Wide Angle Clip-On Hinge, Opening Angle 165 degree, Full Overlay Self-Close

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.02.500

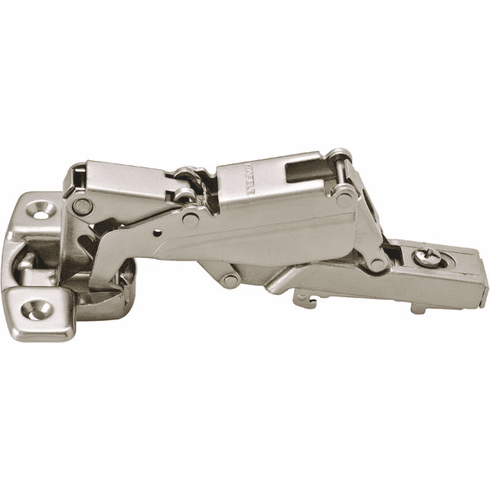

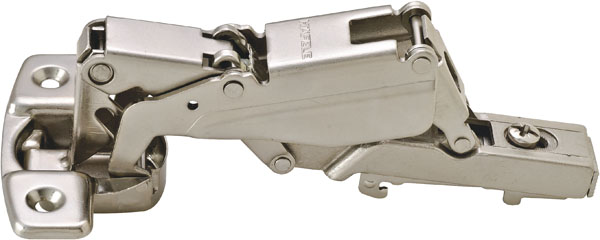

  Product Title: Wide Angle Clip-On Hinge, Opening Angle 165°, Full Overlay, Self-Close

  Category: Wide Angle Clip-On Hinge, Opening Angle 165°, Full Overlay,

  Item Details …

  - Version : With automatic closing spring

  - Concealed hinge version : half overlay

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Opening angle : 165°

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

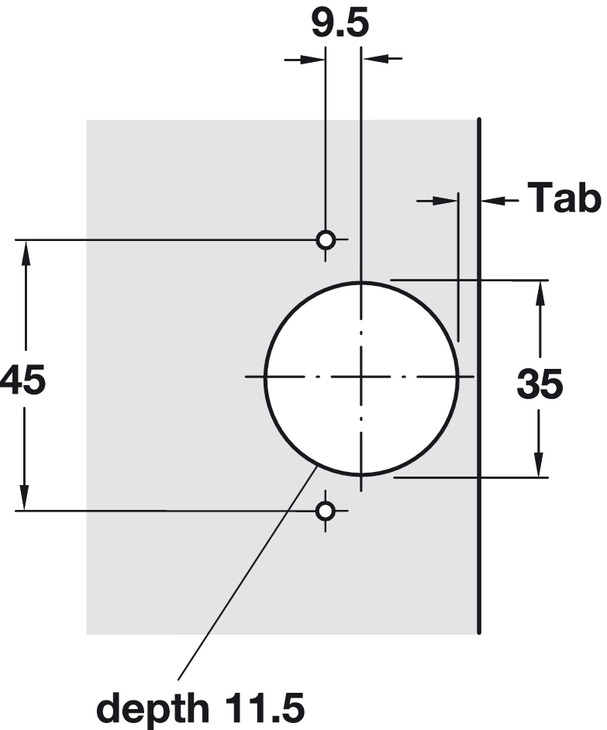

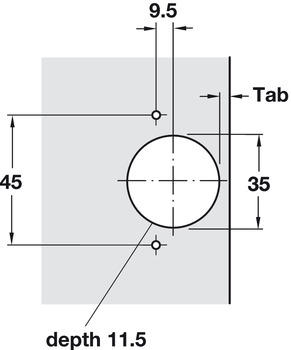

  - Drilling pattern : 45/9.5

  - Adjustment facility : 3-dimensional (with appropriate mounting plate)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.67



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.61-9.61.pdf

  IMPORTANT NOTE: Matching "Mounting Plate" sold separately. Click Item# 315.99.500
