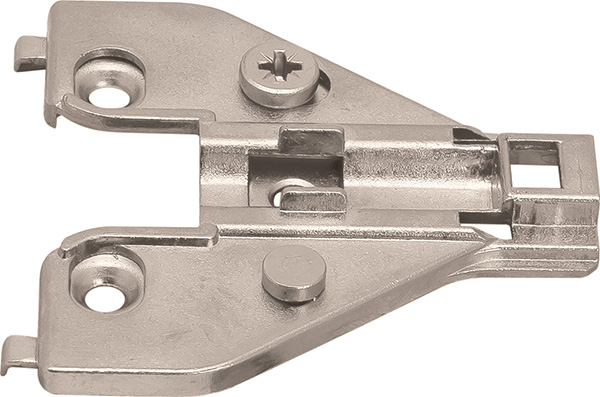

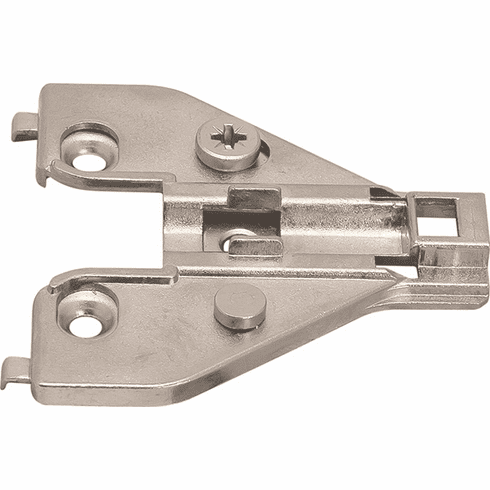

Hafele 315.99.500 Mounting Plate, Face Frame, for Clip-On Hinges Height: 0, mounting: 5/8" overlay

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.99.500

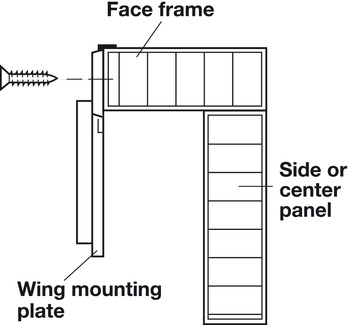

  Product Title: Mounting Plate, Face Frame, for Clip-On Hinges, Height: 0, mounting: 5/8" overlay

  Category: Mounting Plate, Face Frame, for Clip-On Hinges,

  Item Details …

  - Material : Steel

  - Color/finish : nickel plated

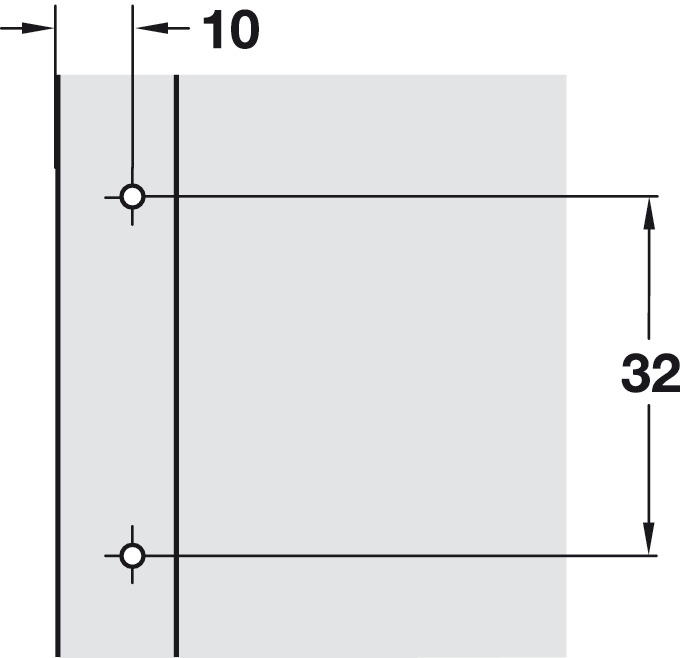

  - Screw distance : 32.00 mm

  - Edge distance : 10.00 mm

  - Adjustment facility : Height adjustment Via slot

  - Manufacturer : Häfele

  - Model series : Metalla Mini SM

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.69



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.63-9.63.pdf

  IMPORTANT NOTE: Matching "Hinge" sold separately. Click Item# 315.02.500

  Hafele 315.99.500, 315-99-500, 31599500, 315.99, 315.02.500, 315-02-500, 31502500, 315-02, BFHO


  Specifications/Hafele Catalog - Page# FC9.61: Click to open: Product Specifications on this page. Click to open: Product Specifications in a new window. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
