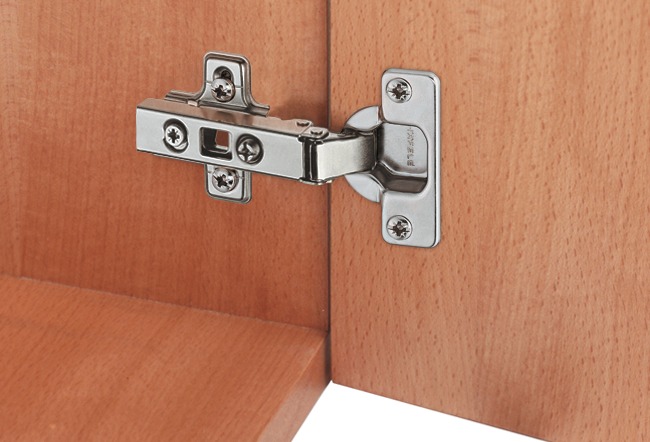

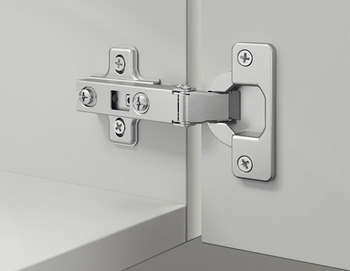

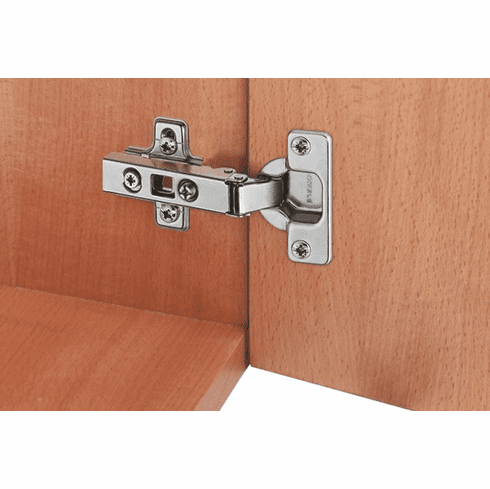

Hafele 311.90.521 Concealed hinge, Metalla A 110 degree, half overlay mounting/twin mounting For standard application

Product Information

• Description

  Manufacturer: Hafele
  Item: 311.90.521

  Product Title: Concealed Cup Hinge, Häfele Metalla A 110°, half overlay mounting/twin mounting, For standard application, 8 mm crank, 45/9.5, nickel plated

  Category: Concealed Cup Hinge, Häfele Metalla A 110°, half overlay mounting/twin mounting, For standard application, 8 mm crank, 45/9.5, nickel plated

  Item Details …

  - Area of application : For wooden doors

  - Version : With automatic closing spring

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 110°

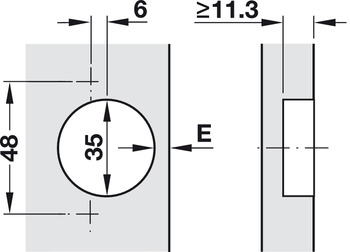

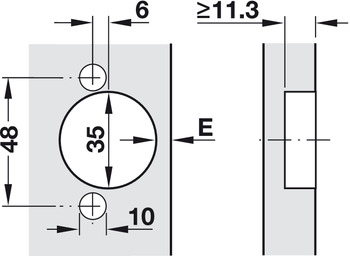

  - Cup drilling depth : 12.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment ±2.5 mm, Height adjustment ±2 mm, Depth adjustment ±2 mm, Height adjustment via mounting plate

  - Installation : Door on cabinet with slide-on system A

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.72



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.64-9.65.pdf

  Hafele 311.90.521, 311-90-521, 31190521, 311.90


  Specifications/Hafele Catalog - Page# FC9.63: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Cruciform mounting plate, Häfele Metalla A, with slide-on system, for screw fixing
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
