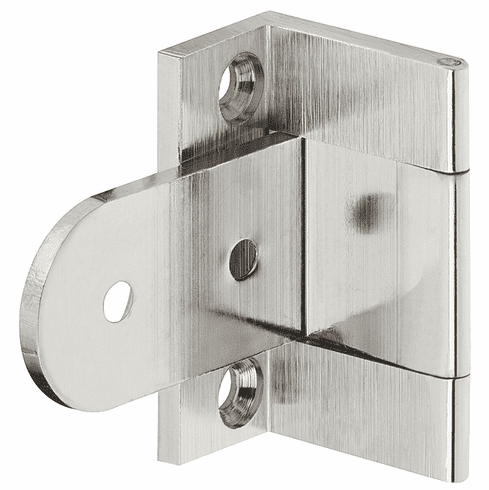

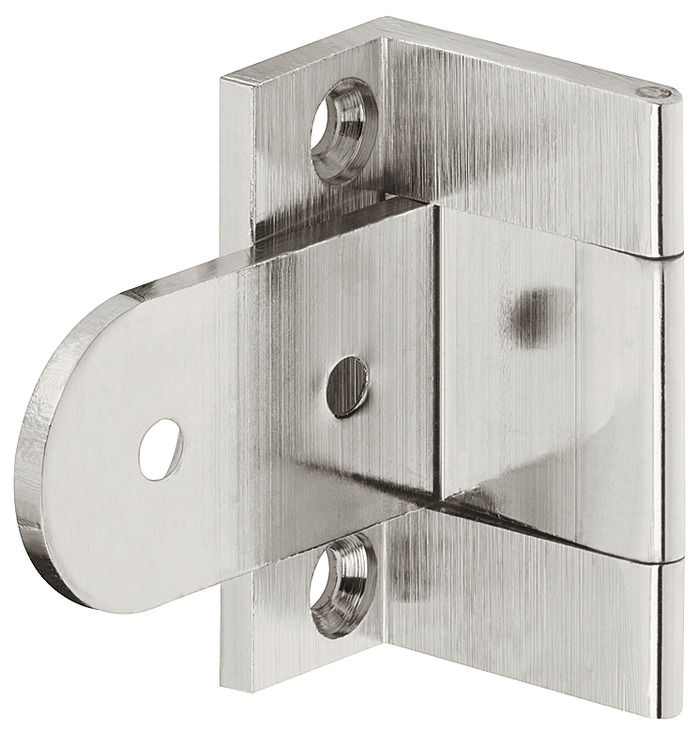

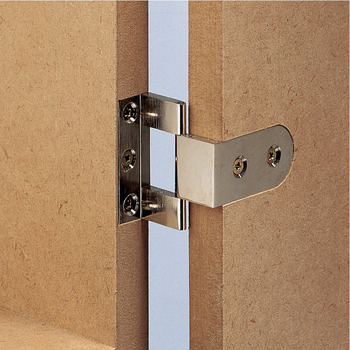

Hafele 307.05.705 Cranked Butt Hinge, Neuform, for Door Thickness 15-16 mm For overlay doors, Polished nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 307.05.705

  Product Title: Cranked Butt Hinge, Neuform, Brass, for Overlay Doors, for Door Thickness 15-16 mm, Polished nickel

  Category: Cranked Butt Hinge, Neuform, Brass, for Overlay Doors,

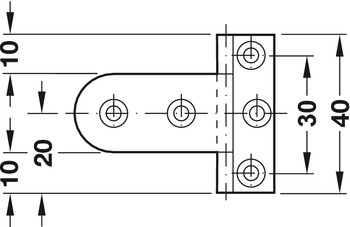

  Item Details …

  - Material : Brass

  - Color/finish : polished, nickel plated

  - Length : 40.00 mm

  - Length (inch) : Barrel: 1 9/16"

  - Flange thickness : 4.00 mm

  - Number of drill holes : 5.00

  - Mounting : left or right

  - Product type : Cranked Butt Hinge

  - Side panel thickness min. :

  - Area of application : For overlay doors

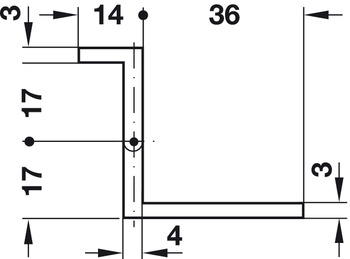

  - Crank type : L1

  - Flange shape : rounded?/?square

  - For door thickness : 15?–?16 mm

  - Side panel thickness : ?14 mm

  - Installation : For screw fixing
