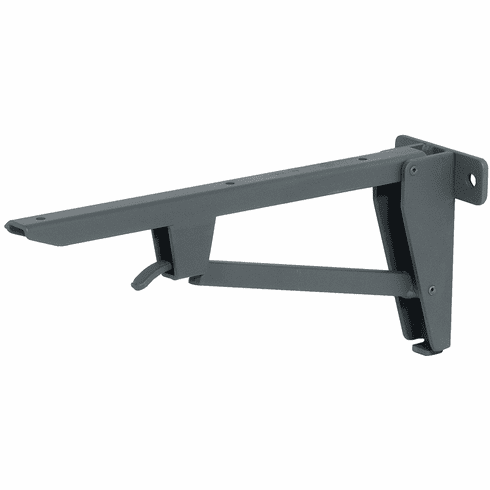

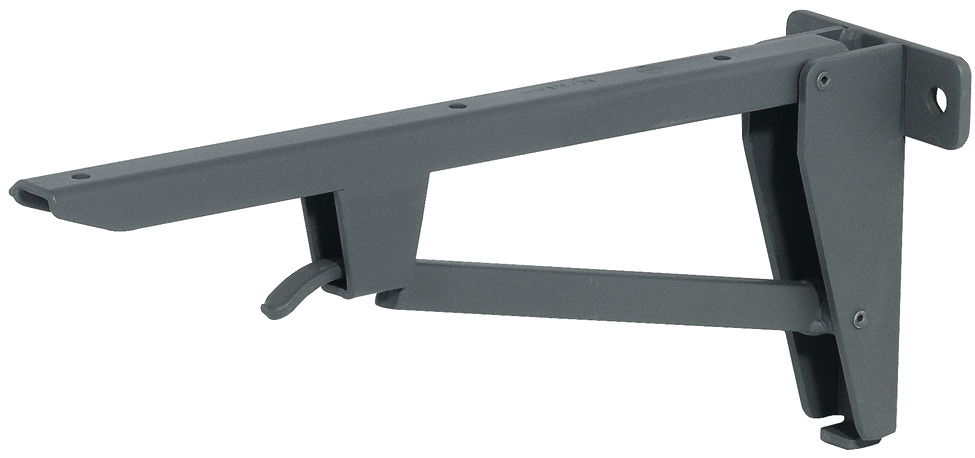

Hafele 287.42.412 Folding Table Bracket, Hebgo, Light-Duty Steel, Dimensions (AxBxC): 380 x 82 x 134 mm, gray primed

Product Information

• Description

  Hafele 287.42.412 Folding Table Bracket, Hebgo, Light-Duty

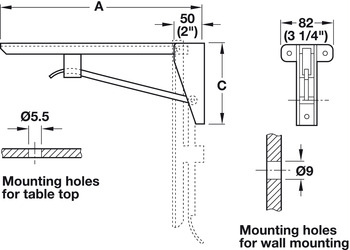

  Steel, Dimensions (AxBxC): 380 x 82 x 134 mm, gray primed



  Model series : Hebgo

  Material : Steel

  Color : Gray primed

  Load bearing capacity : Per pair: (330 lbs.) 150 kg

  Note :

  Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.
