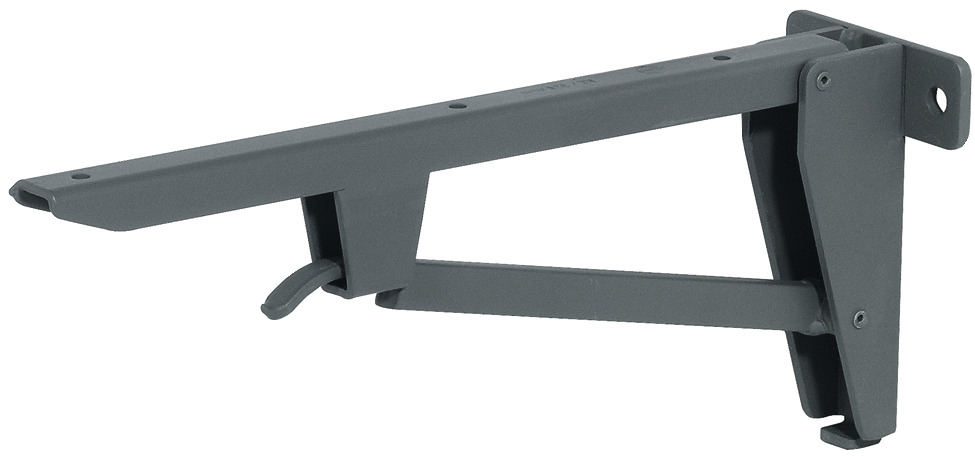

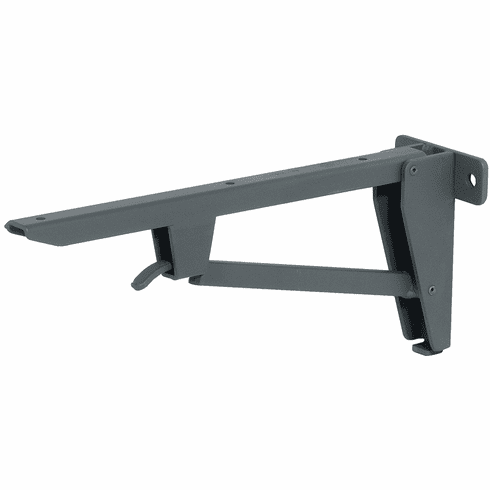

Hafele 287.42.403 Folding Table Bracket, Hebgo, Light-Duty Steel, Dimensions (AxBxC): 330 x 82 x 134 mm, gray primed

Product Information

• Description

  Hafele 287.42.403 Folding Table Bracket, Hebgo, Light-Duty
  Steel, Dimensions (AxBxC): 330 x 82 x 134 mm, gray primed



  Model series : Hebgo

  Material : Steel

  Color : Gray primed

  Load bearing capacity : Per pair: (330 lbs.) 150 kg

  Note :

  Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.







• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.63-11.63.pdf

  Hafele 287.42.403, 287-42-403, 28742403, 287.42


  Specifications/Hafele Catalog - Page# FC11.71: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
