Hafele 282.24.730 Shelf Support, 5 mm With twin grooves, Nickel-plated

Product Information

• Description

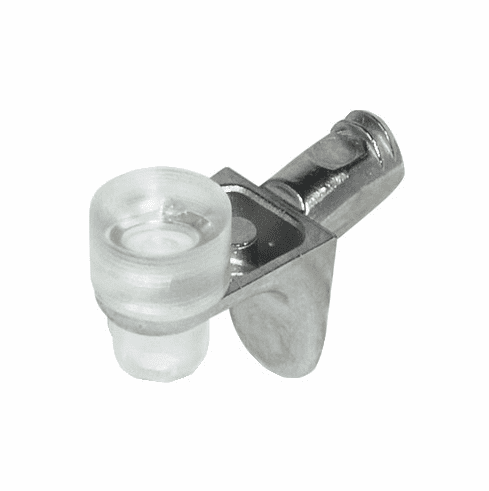

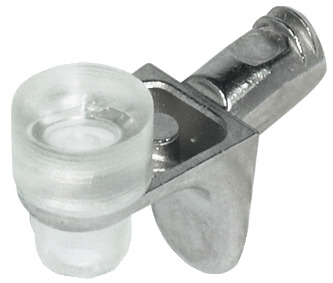

  Hafele 282.24.730 Shelf Support, 5 mm
  With twin grooves, Nickel-plated



  Features : With 2 wedges,

  Load bearing capacity : 6.25 kg per piece, i.e. 25 kg load bearing capacity when using 4 shelf supports
  tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test

  Material : Zinc alloy
  support: Plastic

  Color : Support: Transparent

  Installation : For plug fitting into drill hole 5 mm

  Features : With 2 wedges

  For drill hole : 5 mm

  Note :

  Ribs anchor themselves in the system holes due to pressure from the shelf, which is an important feature for areas prone to earthquakes.







• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.79-11.82.pdf

  Hafele 282.24.730, 282-24-730, 28224730, 282.24


  Specifications/Hafele Catalog - Page# FC11.86: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
