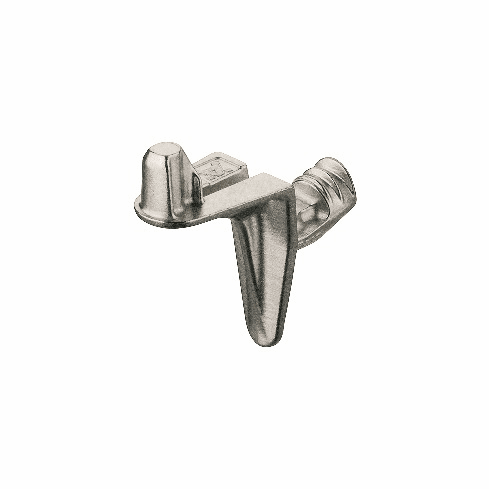

Hafele 282.24.728 Shelf Support, with Shelf Fixing Plug, Offset, 125 kg With three wedged ribs, Nickel-plated
Product Information
Description
Manufacturer: Hafele
Item: 282.24.728
Product Title: Shelf Support, with Shelf Fixing Plug, Offset, 125 kg, With three wedged ribs, Nickel-plated
Category: Shelf Support, with Shelf Fixing Plug, Offset, 125 kg, With three wedged ribs, Nickel-plated
Item Details …
- Patented design assures minimum lowering of shelf under heavy weight
- Area of application : for wooden shelves
- Color/finish : nickel plated
- Installation : For insert fitting

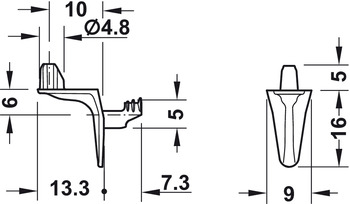

- For drill hole Ø : 5.00 mm
- Distance fixing lug : 10.00 mm
- Support size : 6.00 mm
- Pin length : 7.30 mm
- Version : With three wedged ribs and shelf fixing plug
- Material : Zinc alloy
- Load bearing capacity per item : 15.60 kg
- Load bearing capacity with 4 shelf supports : 62.40 kg
- Load bearing capacity : 137 lbs
- Note on load bearing capacity : Tested to DIN EN 16337:2013-08 with 1.7 kg striking cap, i.e. 62.4 kg load bearing capacity when using 4 shelf supportsData Sheet
