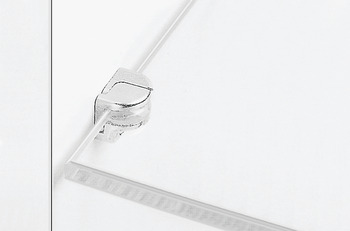

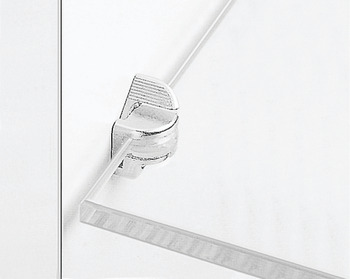

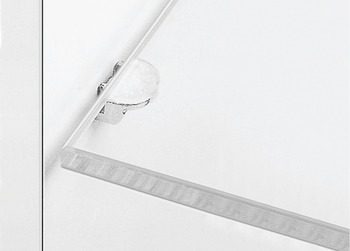

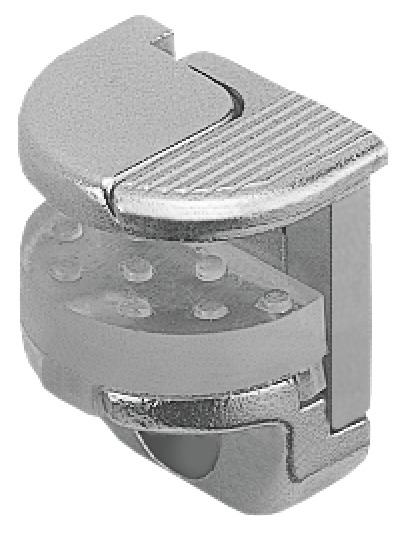

Hafele 282.13.701 Glass Shelf Support, for Glass Thickness of 6/8/10 mm, Screw Mount Screw mounts into 5 mm hole, Nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.13.701

  Product Title: Glass Shelf Support, for Glass Thickness of 6/8/10 mm, Screw Mount, Screw mounts into Ø5 mm hole, Nickel plated

  Category: Glass Shelf Support, for Glass Thickness of 6/8/10 mm, Screw Mount, Screw mounts into Ø5 mm hole, Nickel plated

  Item Details …

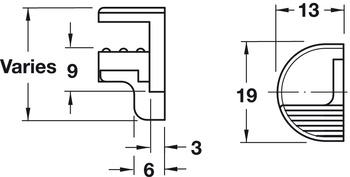

  - Shelf width must be 6 – 7 mm less than the inside cabinet width

  - For insertion and tightening in a drilled hole

  - For drill hole Ø : 5.00 mm

  - Support size : 9.00 mm

  - Pin length : 9.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.79-11.82.pdf

  Hafele 282.13.701, 282-13-701, 28213701, 282.13


  Specifications/Hafele Catalog - Page# FC11.88: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
