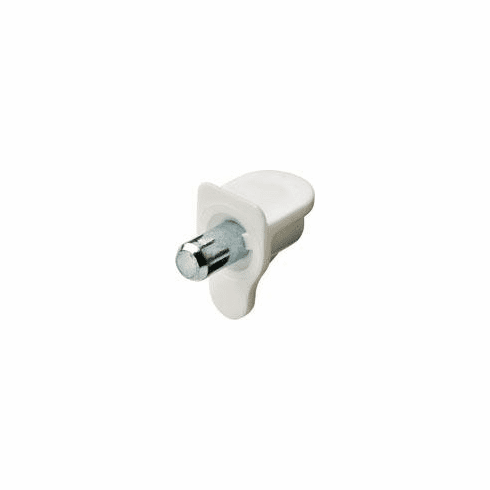

Hafele 282.12.705 Shelf Support, For 5 mm hole 12.6 mm depth, White
Product Information
Description
Manufacturer: Hafele
Item: 282.12.705

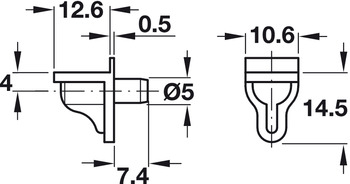

Product Title: Shelf Support, For wood or glass, plastic, for plug fitting into drill hole Ø 5 mm, For Ø5 mm hole 12.6 mm depth, White
Category: Shelf Support, For wood or glass, plastic, for plug fitting into drill hole Ø 5 mm, For Ø5 mm hole 12.6 mm depth
Item Details …
- Area of application : for wooden and glass shelves
- Installation : For insert fitting
- For drill hole Ø : 5.00 mm
- Support size : 4.00 mm
- Pin length : 7.40 mm
- Version : With galvanized steel pin
- Material : Plastic
- Load bearing capacity per item : 3.10 kg
- Load bearing capacity with 4 shelf supports : 12.40 kg
- Note on load bearing capacity : 12.4 kg with 4 supportsData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.77-11.78.pdfHafele 282.12.705, 282-12-705, 28212705, 282.12
Specifications/Hafele Catalog - Page# FC11.84:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Connectors & Shelf Supports Catalog
Return to: All Hafele CatalogsDownload
