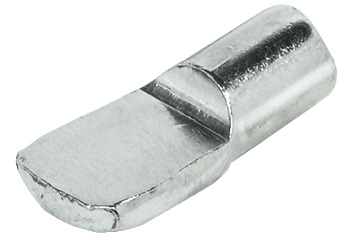

Hafele 282.01.701 Shelf Support, steel, nickel-plated, 7mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.01.701

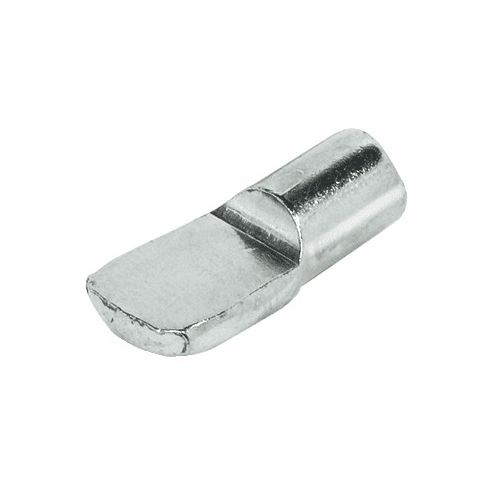

  Product Title: Shelf Support, Ø7 mm, Steel, load-bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06), Nickel-plated

  Category: Shelf Support, Ø7 mm, Steel, load-bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06)

  Item Details …

  - Area of application : for wooden shelves

  - Installation : For insert fitting

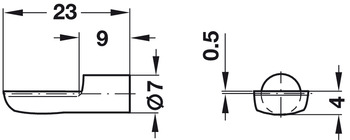

  - For drill hole Ø : 7.00 mm

  - Support size : 0.50 mm

  - Pin length : 9.00 mm

  - Version : load bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06)

  - Material : Steel

  - Load bearing capacity with 4 shelf supports : 100.00 kg

  - Load bearing capacity : 220 lbs

  - Note on load bearing capacity : recommended load-bearing capacity

  - Installation reference : for inserting into drill hole Ø 7 mm or sleeve

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.117



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf

  Hafele 282.01.701, 282-01-701, 28201701, 282.01


  Specifications/Hafele Catalog - Page# FC11.82: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Grommet, For plug fitting into drill hole Ø 7. 5 mm
