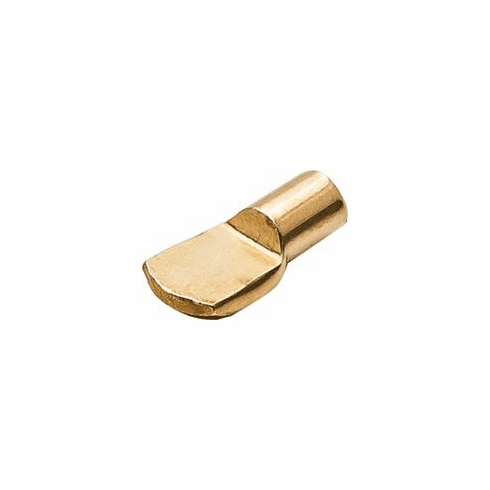

Hafele 282.01.505 Shelf Support, steel, brass-plated, 7mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.01.505

  Product Title: Shelf Support, Ø7 mm, Steel, load-bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06), Brass-plated

  Category: Shelf Support, Ø7 mm, Steel, load-bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06)

  Item Details …

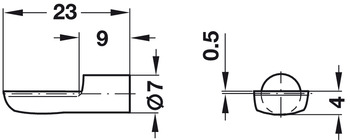

  - Area of application : for wooden shelves

  - Installation : For insert fitting

  - For drill hole Ø : 7.00 mm

  - Support size : 0.50 mm

  - Pin length : 9.00 mm

  - Version : load bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06)

  - Material : Steel

  - Load bearing capacity with 4 shelf supports : 100.00 kg

  - Load bearing capacity : 220 lbs

  - Note on load bearing capacity : recommended load-bearing capacity

  - Installation reference : for inserting into drill hole Ø 7 mm or sleeve

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.117



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf

  Hafele 282.01.505, 282-01-505, 28201505, 282.01
