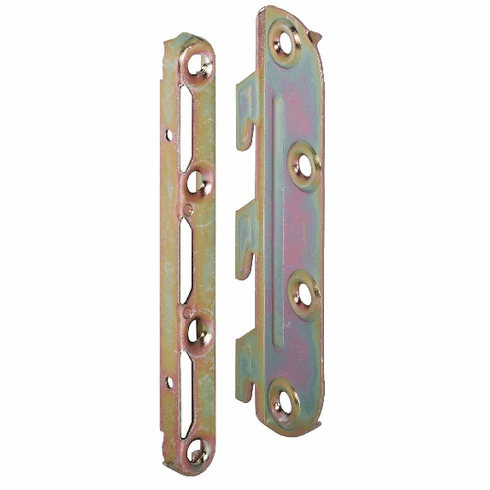

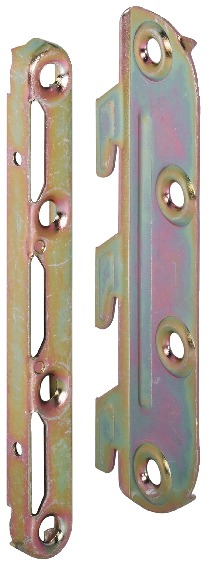

Hafele 271.03.930 Bed Fitting, steel, silver, chromated, 130mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 271.03.930

  Product Title: Bed Fitting, Noval K, For right and left hand use, Silver, chromated

  Category: Bed Fitting, Noval K, For right and left hand use, Silver, chromated

  Item Details …

  - 1 set is required to connect 4 corners

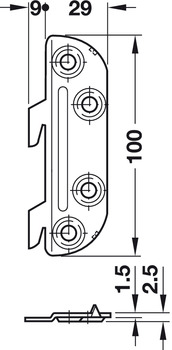

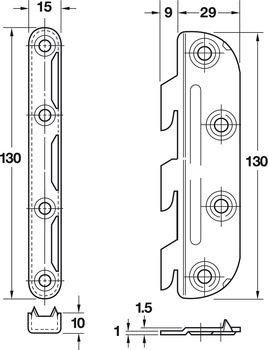

  - Height : 130.00 mm

  - Color/finish : chromated

  - Version : With pointed teeth and cranked hook component

  - Material : Steel

  - Mounting : For left and right hand use

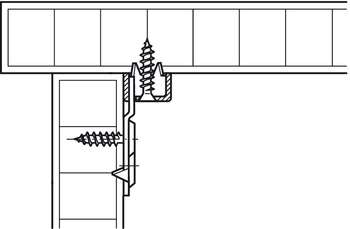

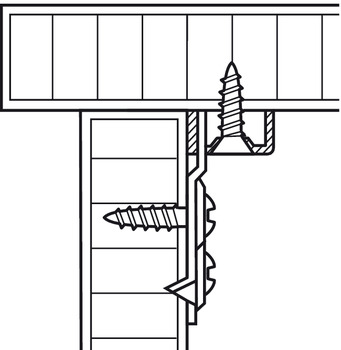

  - Installation : For screw fixing

  - Bed connector type : bed frame

  - Supplied with:

  - 4 female parts

  - 2 left hooks

  - 2 right hooks

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.97



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.121-11.121.pdf

  Hafele 271.03.930, 271-03-930, 27103930, 271.03
