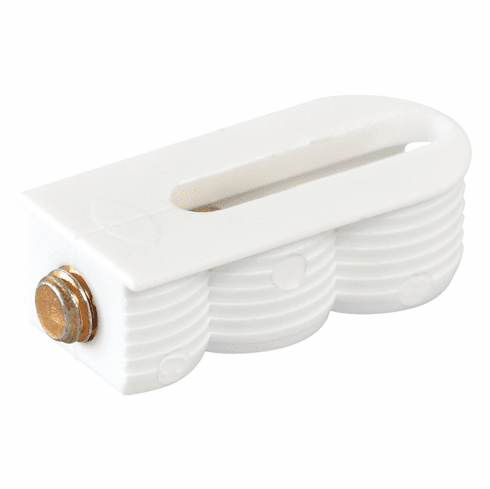

Hafele 267.91.311 Cabineo 8 M6, connector system, plastic, white, bulk

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.91.311

  Product Title: Cabinet Connector, Lamello Cabineo 8 M6, Fixing screw with metric thread M6, white, 2000 pcs

  Category: Cabinet Connector, Lamello Cabineo 8 M6, Fixing screw with metric thread M6

  Item Details …

  - Surface processing only: For use with CNC, edge drilling not required

  - with pre-mounted metric screw for screwing into counter thread

  - ideal for connecting wood materials with materials such as aluminium, steel or HPL

  - when used with sleeve: no wear and tear of the workpiece with repeated assembly and disassembly

  - Easy to transport: Flat pack delivery available

  - High clamping force: Solid, positive-fit connection

  - For use with or without cover cap

  - Corner and center panel connections, for use with CNC, edge drillings not required

  - Pre-mounted for quick and easy installation; additional dowels and screws are not required

  - High clamping force ensures a solid, positive-fit connection

  - Separable

  - Easily transported: Flat pack delivery

  - For use with or without cover cap

  - Material : Connector housing: Plastic, fiberglass reinforcedScrew: Steel

  - For wood thickness min. : 12.00 mm

  - Routing depth : 11.00 mm

  - Bolt length : 8.00 mm

  - Area of application : Connector for corner and centre panel connections, for processing with CNC machines, for connecting wood materials with materials such as aluminium, steel or HPL

  - Installation : Press-fits into base panel and screw mounts into side panel with M6 threaded insert

  - Supplied with:

  - 2000 pcs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Processing and installation

  Processing and mounting the sleeve

  Meet Cabineo

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.38A



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Insert Nut, Lamello Cabineo 8 M6 (choose one):


  • Brass, M6 x 12.3, 100 pcs. Brass, M6 x 12.3, 500 pcs. Brass, M6 x 15.3, 100 pcs. Brass, M6 x 15.3, 500 pcs.

    267.91.314 267.91.315 267.91.316 267.91.317

    Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Installation Tool, Lamello Cabineo 8 M6
  • Cabinet Connector, Lamello Cabineo
