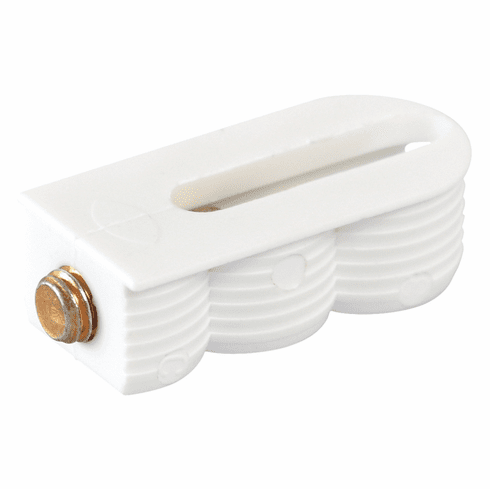

Hafele 267.91.310 Cabineo 8 M6, connector system, plastic, white, 500 pieces

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.91.310

  Product Title: Cabinet Connector, Lamello Cabineo 8 M6, Fixing screw with metric thread M6, white, 500 pcs

  Category: Cabinet Connector, Lamello Cabineo 8 M6, Fixing screw with metric thread M6

  Item Details …

  - Surface processing only: For use with CNC, edge drilling not required

  - with pre-mounted metric screw for screwing into counter thread

  - ideal for connecting wood materials with materials such as aluminium, steel or HPL

  - when used with sleeve: no wear and tear of the workpiece with repeated assembly and disassembly

  - Easy to transport: Flat pack delivery available

  - High clamping force: Solid, positive-fit connection

  - For use with or without cover cap

  - Corner and center panel connections, for use with CNC, edge drillings not required

  - Pre-mounted for quick and easy installation; additional dowels and screws are not required

  - High clamping force ensures a solid, positive-fit connection

  - Separable

  - Easily transported: Flat pack delivery

  - For use with or without cover cap

  - Material : Connector housing: Plastic, fiberglass reinforcedScrew: Steel

  - For wood thickness min. : 12.00 mm

  - Routing depth : 11.00 mm

  - Bolt length : 8.00 mm

  - Area of application : Connector for corner and centre panel connections, for processing with CNC machines, for connecting wood materials with materials such as aluminium, steel or HPL

  - Installation : Press-fits into base panel and screw mounts into side panel with M6 threaded insert

  - Supplied with:

  - 500 pcs
