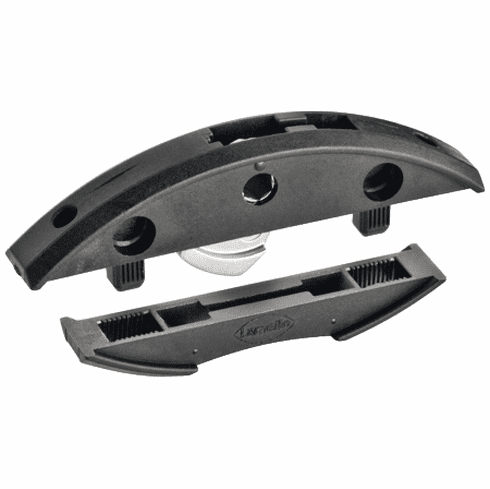

Hafele 267.91.188 Cabinet Conector, Clamex P Medius 14/10, biscuit shaped, 80 pc

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.91.188

  Product Title: Cabinet Conector, Clamex P Medius, For wood thickness from 16 mm and above, packing 80 pieces

  Category: Cabinet Conector, Clamex P Medius, Centre panel connector

  Item Details …

  - The three top reasons to use Clamex P-14 as a standard connector:1. Nearly invisible, secure connections2. Process advantages in production, transport and assembly3. One connector for all connection applications and angles

  - Quick and tool-less installation

  - Connector can be removed and retightened as necessary

  - The tensioning element makes high force transfer possible

  - Laterally adjustable

  - For corner, center panel and surface connections form 30° - 180°

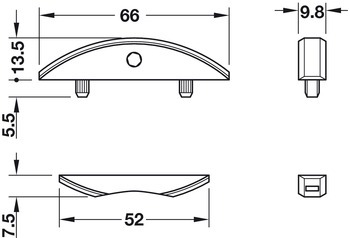

  - Connector model : Clamex P-14 Medius

  - For wood thickness : ?16 mm

  - Routing depth : 14.00 mm

  - Area of application : For center panels

  - Material : Plastic

  - Deadbolt material : Zinc alloy

  - Drive : Hexagon socket SW4

  - Adjustment facility : Lengthways ±1 mm

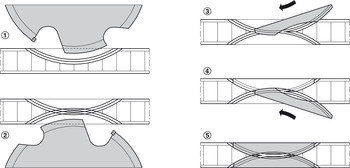

  - Installation description : Mill 7 mm groove with undercut for connectorDrill 6 mm opening for tightening element and slide in the connectorJoin workpieces and tighten with SW4 hex wrench


  Additional Information …

  Join wood using Zeta P2 power tool: depth setting 14
