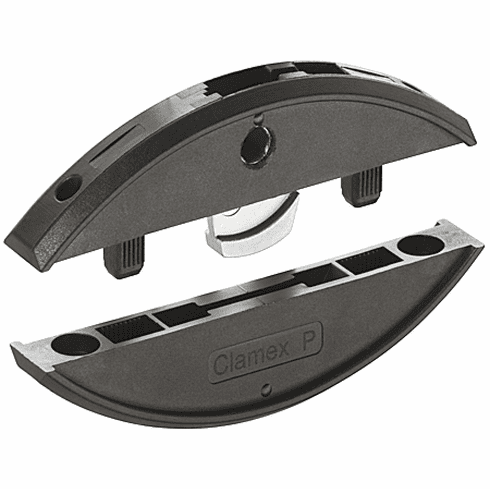

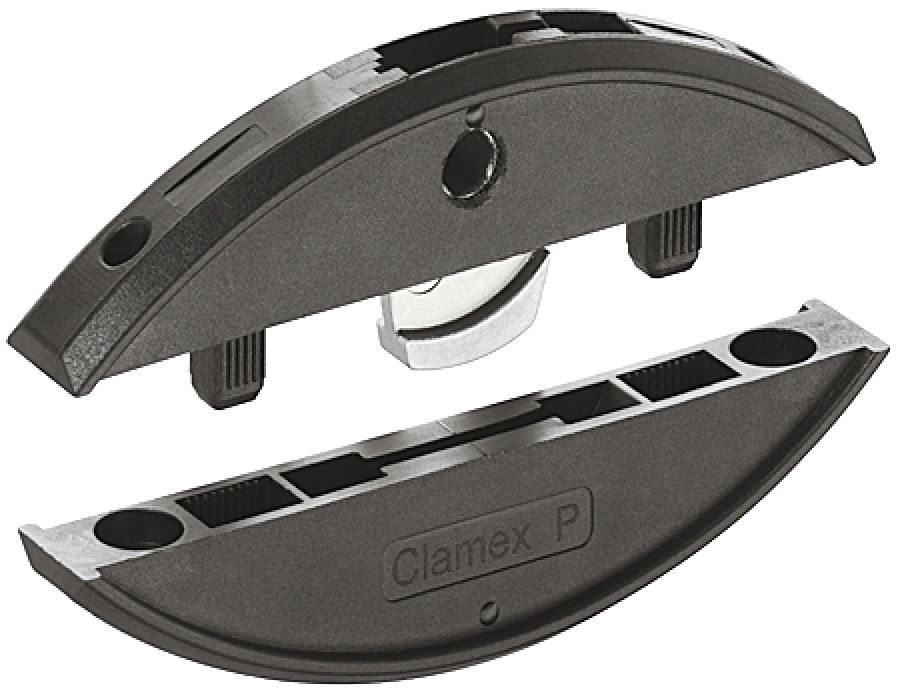

Hafele 267.91.186 Cabinet Connector, Lamello Clamex P-14 Packing: 80 pcs

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.91.186

  Product Title: Cabinet Connector, Lamello Clamex P-14, Packing: 80 pcs

  Category: Cabinet Connector, Lamello Clamex P-14/10,

  Item Details …

  - The three top reason to use Clamex P-14 as a standard connector:

  - 1. Nearly invisible, secure connections

  - 2. Process advantages in production, transport and assembly

  - 3. One connector for all connection applications and angles

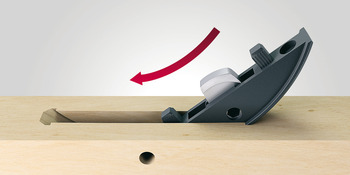

  - Quick and tool-less installation

  - Connector can be removed and retightened as necessary

  - The tensioning element makes high force transfer possible

  - Laterally adjustable

  - Area of application : For corner, center panel and surface connections, and mitre connections from 30° – 180°For solid wood and board material

  - Material : Plastic

  - Deadbolt material : Zinc alloy

  - Color/finish : Black

  - Drive : Hexagon socket SW4

  - Adjustment facility : Lengthways ±1.5 mm

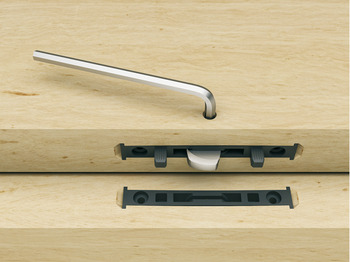

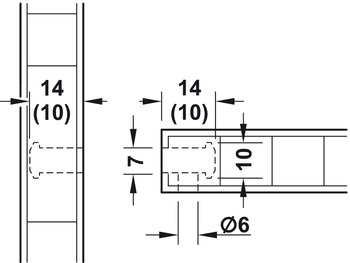

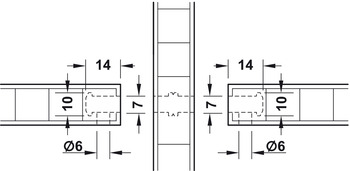

  - Installation description : mill 7 mm groove with T-slot for connectorDrill 6 mm opening for tightening element and slide in the connectorJoin workpieces and tighten with SW4 hex wrench

  - Order reference

  - 1 piece = 1 pair


  Additional Information …

  Join wood using Zeta P2 power tool: depth setting 14
