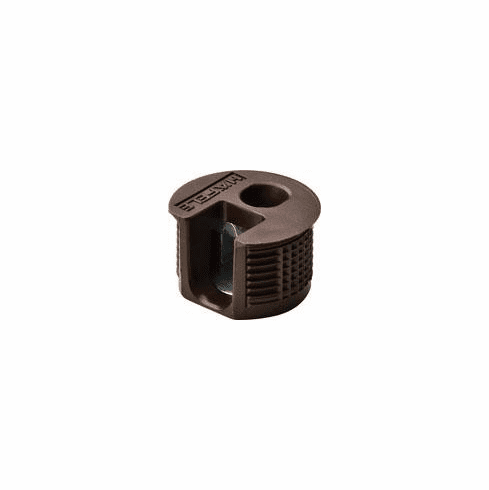

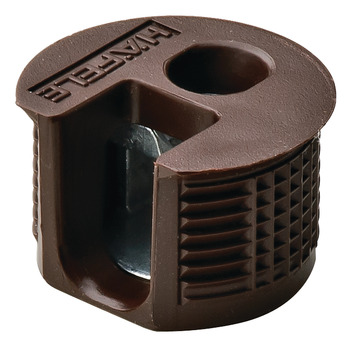

Hafele 263.50.105 Connector Housing, Rafix 20 Flush System Without Ridge, Plastic, For wood thickness 19 mm, brown

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.50.105

  Product Title: Connector Housing, Rafix 20 Flush System, Without Ridge, Plastic, For wood thickness 19 mm, brown

  Category: Connector Housing, Rafix 20 Flush System, Without Ridge, Plastic

  Item Details …

  - No projecting parts due to the countersunk rim on the housing

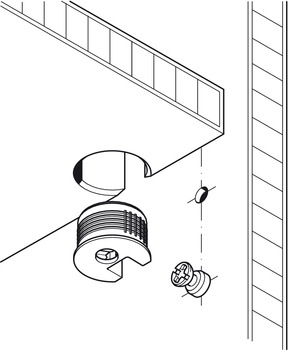

  - Housing is mounted flush to shelf

  - Panels can be stacked without spacers

  - Without ridge

  - With tightening element

  - Mounting cetner: 9.5 mm

  - For wood thickness : 19 mm

  - Dim. A : 9.50 mm

  - Drilling depth : 14.2 mm +0.2 mm

  - Drill hole Ø housing : 20.00 mm

  - Version : with rim, with tightening element, without ridge, without dowel, With countersunk rim

  - Drive : PZ2 cross slot

  - Material : Plastic, Tightening element: Zinc alloy

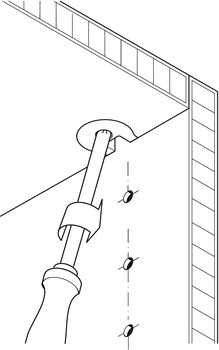

  - Installation : flush-mounted


  Additional Information …

  Drill bit with countersunk cutting edge Cat. No. 001.24.327 (for wood thickness 19 mm) available.The colours shown are similar to RAL colours and are as close as possible to the actual standard colour. The colour shades may vary slightly due to production reasons.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.6



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.21-11.21.pdf

  Hafele 263.50.105, 263-50-105, 26350105, 263.50
