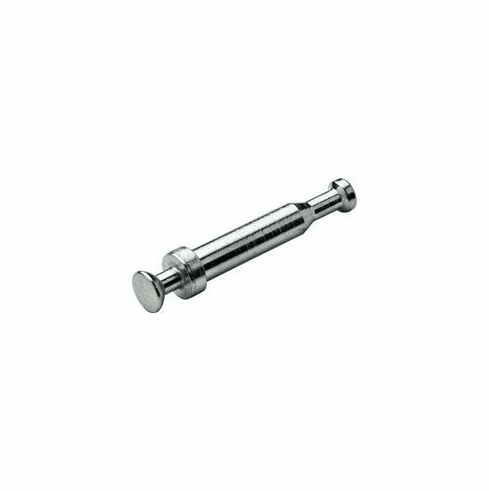

Hafele 263.24.972 Rafix Connecting Bolt, Rafix, Push Thru for Center Panels, 5 mm Ixconnect, Panel thickness 19 mm

Product Information

• Description

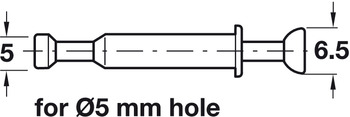

  Hafele 263.24.972 Rafix Connecting Bolt, Rafix, Push Thru for Center Panels, 5 mm
  Ixconnect, Panel thickness 19 mm

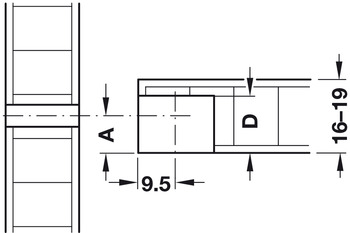

  Application : For 16 mm and 19 mm center panels

  Drill hole diameter : 5 mm

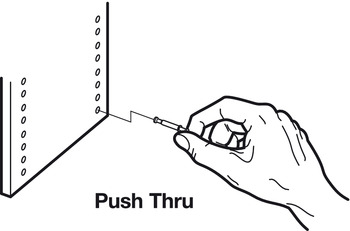

  Installation : For installation into 5 mm

  Finish : Zinc

  Note :

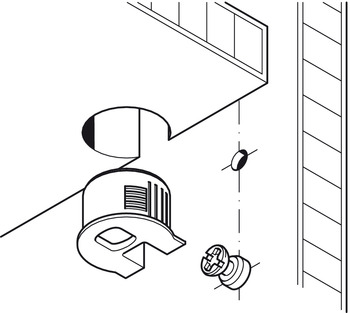

  Caution! This double bolt functions only in combination with Rafix 20 cams without ridge.







• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.22-11.25.pdf

  Hafele 263.24.972, 263-24-972, 26324972, 263.24


  Specifications/Hafele Catalog - Page# FC11.28: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
