Hafele 263.20.818 Connecting Bolt, Rafix S20 For 9 mm panel thickness

Product Information

• Description

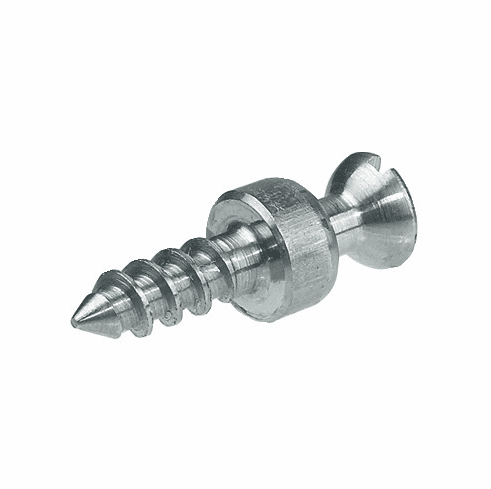

  Hafele 263.20.818 Connecting Bolt, Rafix S20
  For 9 mm panel thickness



  Drive : PZ2 cross slot

  For drill hole diameter : 3 mm

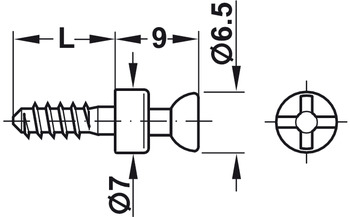

  Thread length L : 11 mm

  Head diameter : 6.5 mm

  Material : Steel

  Finish : Zinc



  Optional items:
  Strip of Spreading Dowels Plastic


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.11-11.11.pdf

  Hafele 263.20.818, 263-20-818, 26320818, 263.20


  Specifications/Hafele Catalog - Page# FC11.11: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
