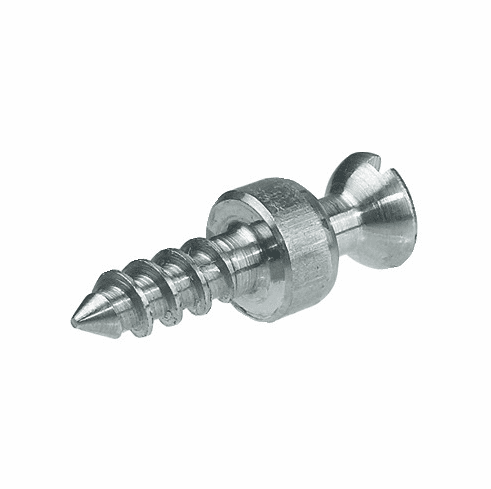

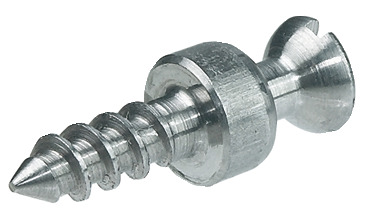

Hafele 263.20.810 Connecting Bolt, Rafix S20 For 11 mm panel thickness

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.20.810

  Product Title: Connecting Bolt, Rafix S20, With special thread, For 11 mm panel thickness

  Category: Connecting Bolt, Rafix S20, With special thread

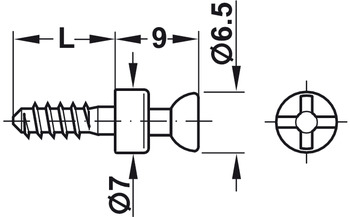

  Item Details …

  - Thread : Special thread

  - Thread type : Special thread

  - Thread length : 11.00 mm

  - For drill hole Ø : 3.00 mm

  - Color/finish : Zinc plated

  - Material : Steel

  - Drive : PZ2 cross slot, Flat blade

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.12



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.11-11.11.pdf

  Hafele 263.20.810, 263-20-810, 26320810, 263.20


  Specifications/Hafele Catalog - Page# FC11.11: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
