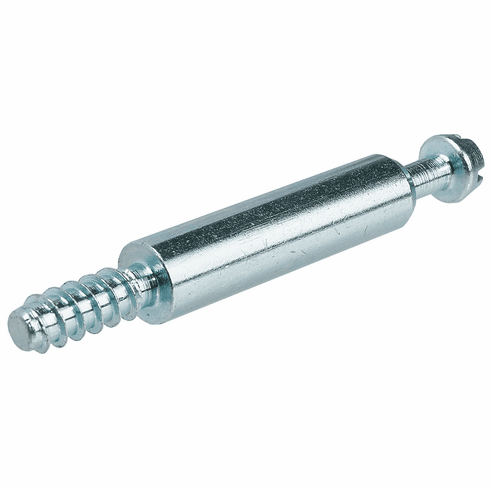

Hafele 262.87.932 Connecting Bolt, Maxifix System, for Drill Hole 5 mm 55 mm drilling distance, 48.5 mm length

Product Information

• Description

  Hafele 262.87.932 Connecting Bolt, Maxifix® System, for Drill Hole 5 mm
  55 mm drilling distance, 48.5 mm length



  Drive : PZ2 cross slot

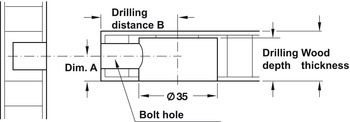

  Bolt hole : 9 mm

  Material : Steel

  Finish : Zinc-plated

  For drill hole : 5 mm

  Thread length L : 16 mm



  Optional items:
  Connector Housing Maxifix System


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.38-11.38.pdf

  Hafele 262.87.932, 262-87-932, 26287932, 262.87


  Specifications/Hafele Catalog - Page# FC11.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
