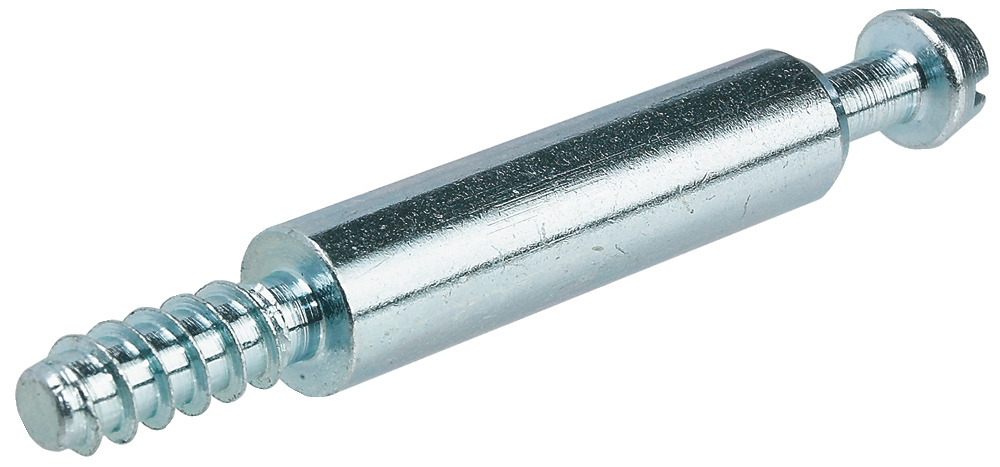

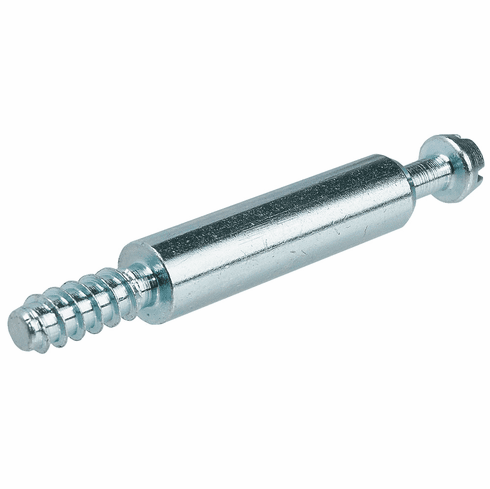

Hafele 262.87.931 Connecting Bolt, Maxifix System, for Drill Hole 5 mm 35 mm drilling distance, 28.5 mm length

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.87.931

  Product Title: Connecting Bolt, Maxifix® System, for Drill Hole Ø5 mm, With special thread, 35 mm drilling distance, 28.5 mm length

  Category: Connecting Bolt, Maxifix® System, for Drill Hole Ø5 mm, With special thread

  Item Details …

  - Thread : special thread

  - Thread type : Special thread

  - Thread length : 16.00 mm

  - For drill hole Ø : 5.00 mm

  - Color/finish : Zinc plated

  - Area of application : For Maxifix 35

  - Material : Steel

  - Drive : PZ2 cross slot

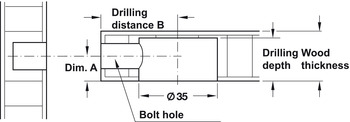

  - Bolt hole : 9.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.29



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.38-11.38.pdf

  Hafele 262.87.931, 262-87-931, 26287931, 262.87


  Specifications/Hafele Catalog - Page# FC11.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
