Hafele 262.87.713 Connector Housing, Maxifix System, Phillips #3 With cross slot, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.87.713

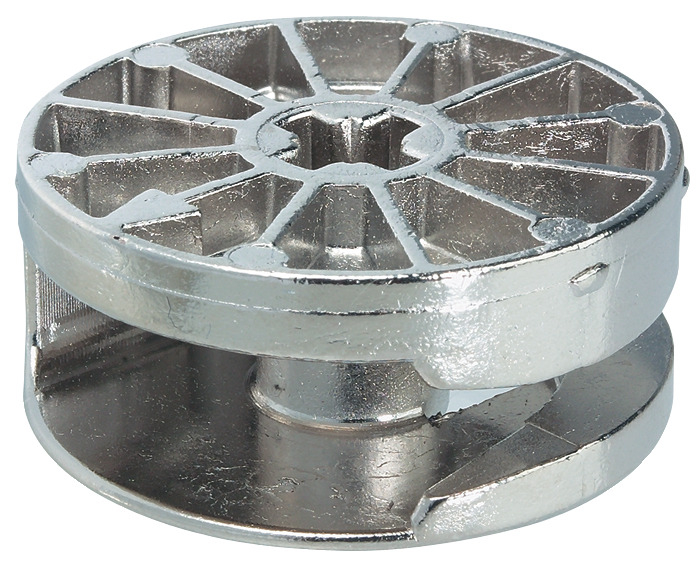

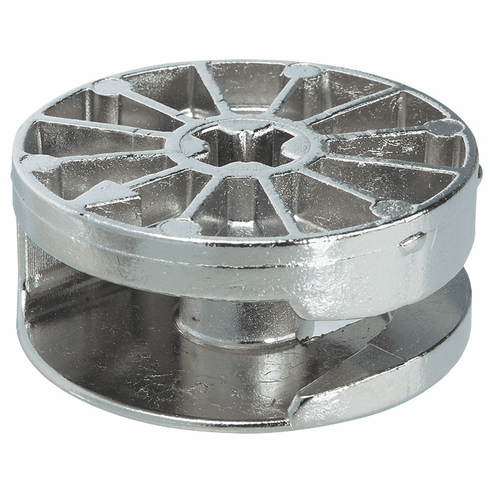

  Product Title: Connector Housing, Maxifix System, With cross slot, Pozi #3, Nickel-plated

  Category: Connector Housing, Maxifix System,

  Item Details …

  - The Maxifix connector system is particularly suitable for permanently load bearing connections, e.g. for cabinet and bedroom construction, as well as in counter or post furniture construction.

  - It is suitable for use from a wood thickness of 19 mm.

  - For wood thickness : ?19 mm

  - Drilling depth : 15.5 mm

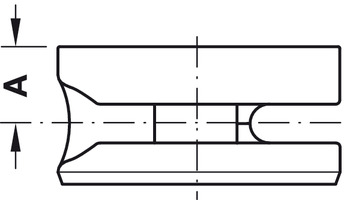

  - Dim. A : 9.50 mm

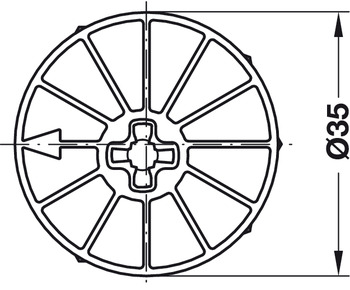

  - Drill hole Ø housing : 35.00 mm

  - Area of application : For extremely stable connections that are subjected to heavy loads

  - Material : Zinc alloy

  - Suitable for : Connecting bolt with drill hole Ø 9 mm.

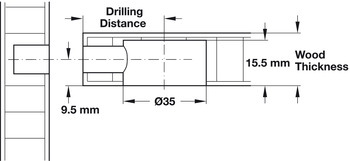

  - Installation : Drilling distance A: distance between middle of bolt hole and top edge corresponds to half of the wood thickness (with 19 mm wood thickness).Drilling dimension B: distance from middle of Maxifix housing to front edge of lateral element (35 or 55 mm), depending on choice of connecting bolt.
