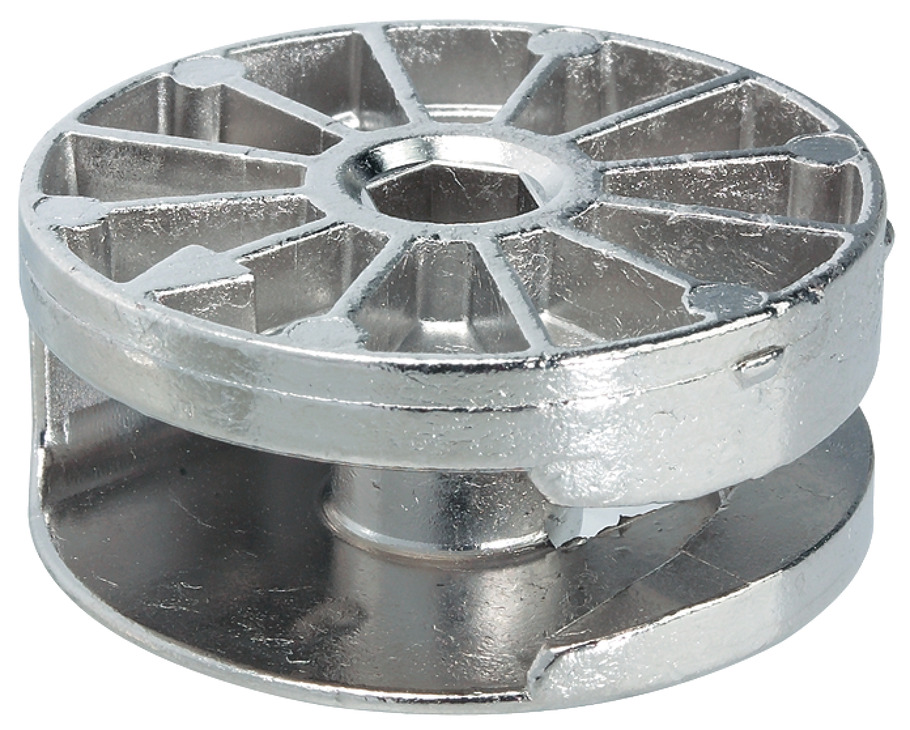

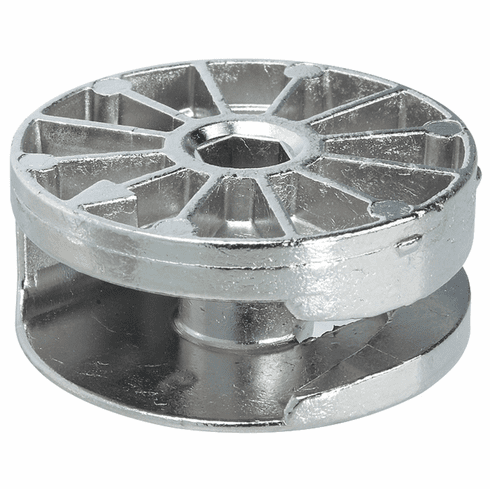

Hafele 262.87.703 Connector Housing, Maxifix System, for Wood Thickness from 19 mm With hexagon socket, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.87.703

  Product Title: Connector Housing, Maxifix System, With hexagon socket, Nickel-plated

  Category: Connector Housing, Maxifix System,

  Item Details …

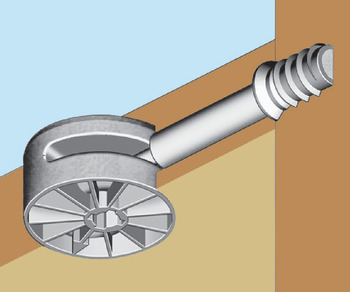

  - The Maxifix connector system is particularly suitable for permanently load bearing connections, e.g. for cabinet and bedroom construction, as well as in counter or post furniture construction.

  - It is suitable for use from a wood thickness of 19 mm.

  - For wood thickness : ?19 mm

  - Drilling depth : 15.5 mm

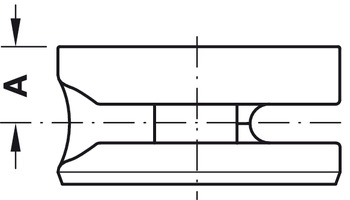

  - Dim. A : 9.50 mm

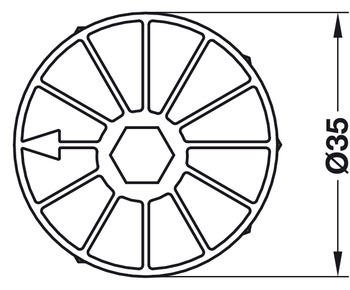

  - Drill hole Ø housing : 35.00 mm

  - Area of application : For extremely stable connections that are subjected to heavy loads

  - Material : Zinc alloy

  - Suitable for : Connecting bolt with drill hole Ø 9 mm.

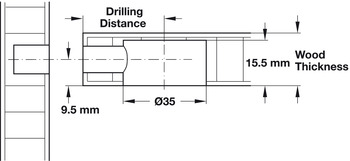

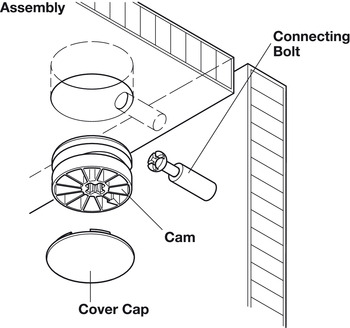

  - Installation : Drilling distance A: distance between middle of bolt hole and top edge corresponds to half of the wood thickness (with 19 mm wood thickness).Drilling dimension B: distance from middle of Maxifix housing to front edge of lateral element (35 or 55 mm), depending on choice of connecting bolt.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  LGA quality certificate 1012 for Minifix, Maxifix, Rafix, TAB-V furniture connectors

  TCH_Furniture_Cabinetry_Hardware_2022| Page 11.28



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.37-11.37.pdf

  Hafele 262.87.703, 262-87-703, 26287703, 262.87


  Specifications/Hafele Catalog - Page# FC11.40: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Cover Cap, for Maxifix® Connector Housing
  • Connecting Bolt, Maxifix® System, for Drill Hole Ø5 mm
  • Connecting Bolt, Maxifix® System, with M6 or M8 Thread
  • Screw-in sleeve, Steel, with Hex Head
