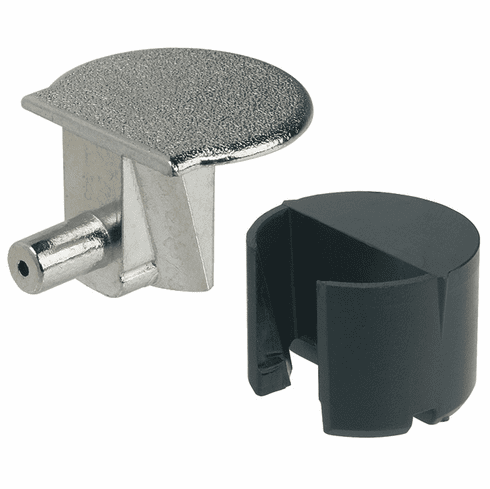

Hafele 262.35.520 RTA and Shelf Connectors, Rasant-Tab for drill hole 5 mm, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.35.520

  Product Title: RTA and Shelf Connectors, Rasant-Tab, for drill hole Ø 3 or 5 mm, Nickel-plated

  Category: RTA and Shelf Connectors, Rasant-Tab, for drill hole Ø 3 or 5 mm, Nickel-plated

  Item Details …

  - Same appearance and drilling pattern as Rafix 20 without pin.

  - The angled contact surfaces of the connector components allow shelves to be attached to the side panel with a positive-fitting connection.

  - Only the base plate of the support is visible after installation.

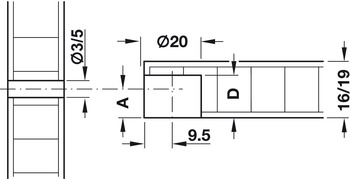

  - For wood thickness : ?19 mm

  - Drilling depth : 14.5 mm

  - Color/finish : Nickel plated, Nickel-plated

  - Installation : for inserting into drill hole Ø 5 mm

  - Material : Support: Zinc alloyBoss insert: Plastic

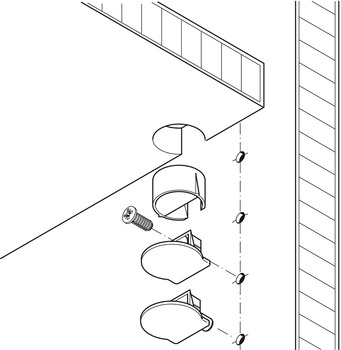

  - Installation description : Support for inserting, boss insert for flush press-fitting into drill hole

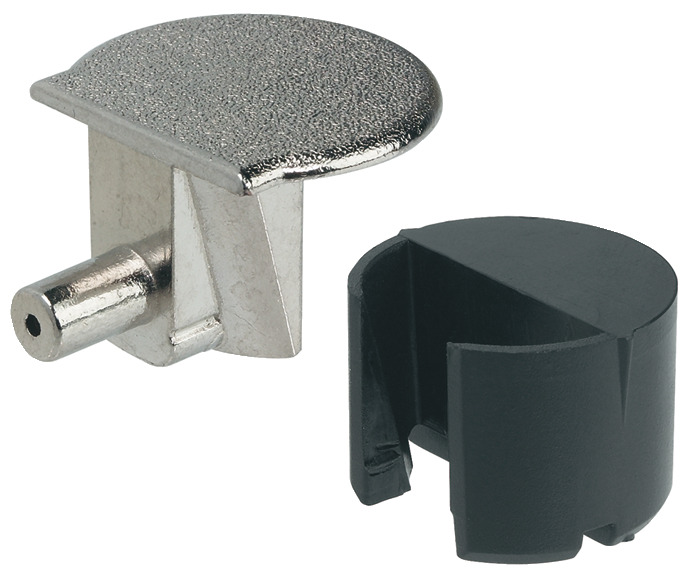

  - Supplied with:

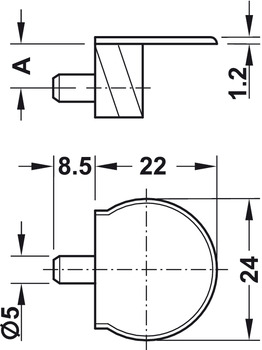

  - 1 support

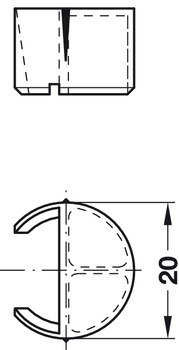

  - 1 boss insert

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.40-11.40.pdf

  Hafele 262.35.520, 262-35-520, 26235520, 262.35
