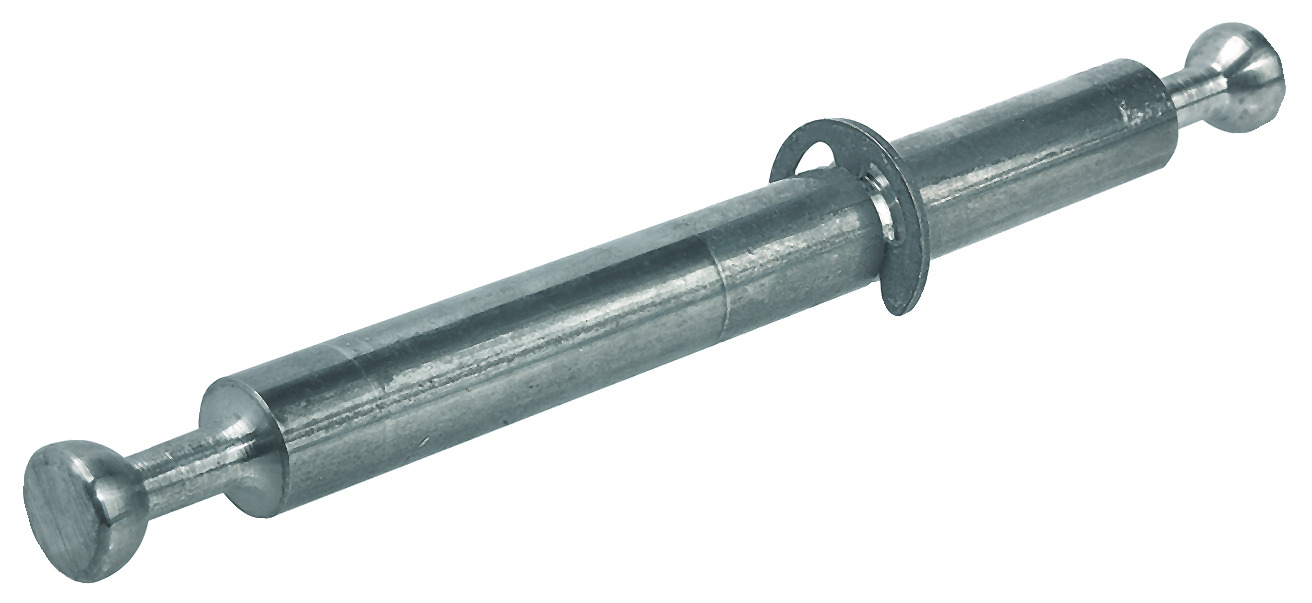

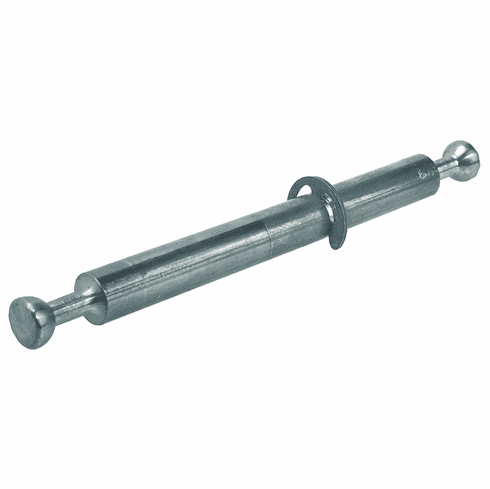

Hafele 262.28.802 Double-Ended Bolts, Minifix 8 mm bolt hole, Side panel thickness W: 16 mm, drilling dimension B: 34 mm, zinc-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.28.802

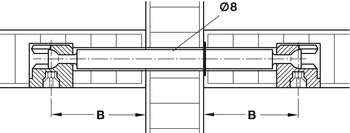

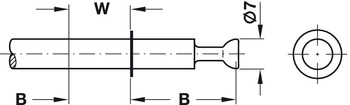

  Product Title: Double-Ended Bolts, Häfele Minifix® system, with snap ring, bolt hole 8 mm, 8 mm bolt hole, Side panel thickness W: 16 mm, drilling dimension B: 34 mm, zinc-plated

  Category: Double-Ended Bolts, Häfele Minifix® system, with snap ring, bolt hole 8 mm, 8 mm bolt hole

  Item Details …

  - Color/finish : Zinc plated

  - Area of application : For double-sided installation/centre panels

  - Material : Steel

  - Bolt hole : 8.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.24



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.28.802, 262-28-802, 26228802, 262.28


  Specifications/Hafele Catalog - Page# FC11.36: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
