Hafele 262.28.786 Double-Ended Bolt, Minifix Zinc-plated, drilling dimension B: 34 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.28.786

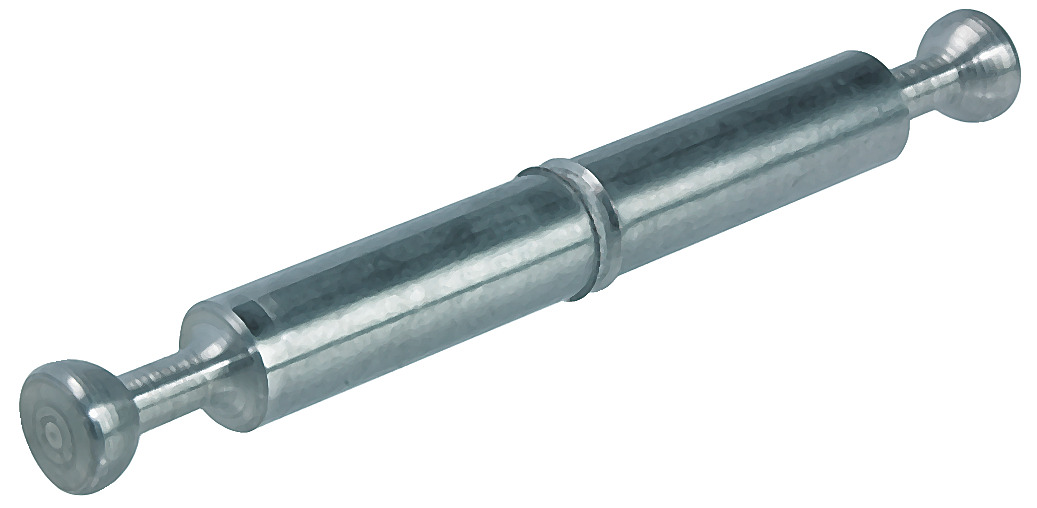

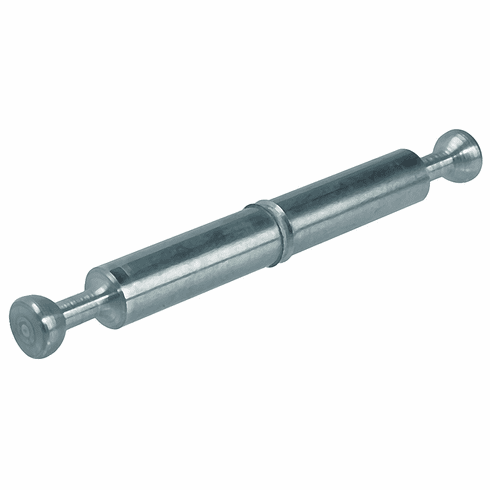

  Product Title: Double-Ended Bolt, Häfele Minifix®, with ridge, bolt hole 7 mm, Zinc-plated, drilling dimension B: 34 mm

  Category: Double-Ended Bolt, Häfele Minifix®, with ridge, bolt hole 7 mm, Zinc-plated, drilling dimension B: 34 mm

  Item Details …

  - With center ring

  - For butt joints using Ø7 mm holes

  - To eliminate up and down movements, 7 mm pilot holes are recommended

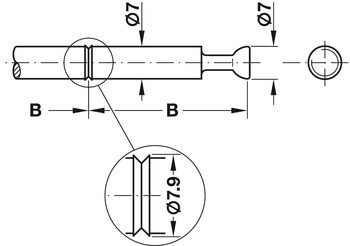

  - Drilling distance: 34 mm

  - Color/finish : Zinc plated

  - Area of application : For edge-to-edge joints

  - Material : Steel

  - Bolt hole : 7.00 mm


  Additional Information …

  7 mm bolt hole avoids height offset

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.24



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.28.786, 262-28-786, 26228786, 262.28


  Specifications/Hafele Catalog - Page# FC11.36: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
