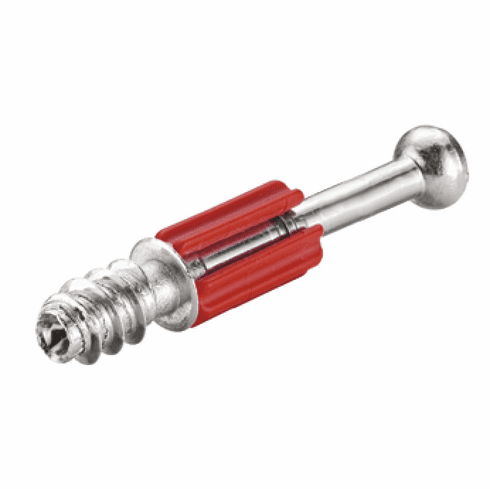

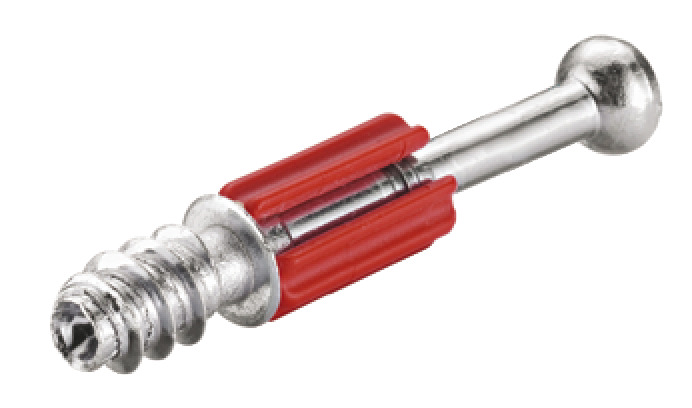

Hafele 262.28.670 Connecting Bolt, S200, reduced play, System Minifix 34 mm drilling distance, zinc-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.28.670

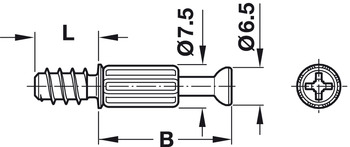

  Product Title: Connecting Bolt, S200, reduced play, System Minifix®, for drill hole Ø: 5 mm, With bolt head Ø 6.5 mm, 34 mm drilling distance, unfinished

  Category: Connecting Bolt, S200, reduced play, System Minifix®, for drill hole Ø: 5 mm, With bolt head Ø 6.5 mm

  Item Details …

  - Polystyrene sleeve prevents sagging and allows bolt to revolve freely during installation

  - Thread type : Special thread

  - Thread length : 11.00 mm

  - For drill hole Ø : 5.00 mm

  - Material : Plastic, Steel

  - Drive : PZ2 cross slot

  - Installation : Screw fixing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.22



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.13-11.13.pdf

  Hafele 262.28.670, 262-28-670, 26228670, 262.28


  Specifications/Hafele Catalog - Page# FC11.15: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
