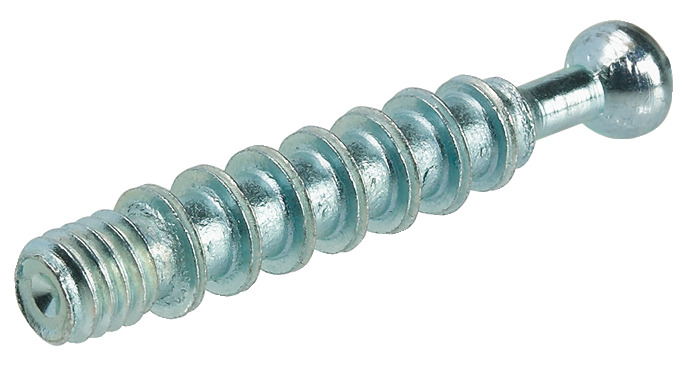

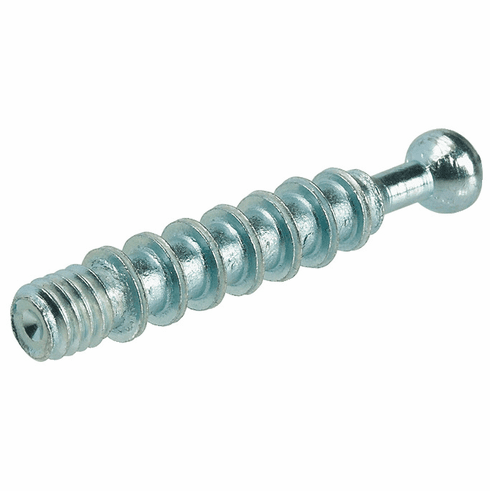

Hafele 262.28.642 Connecting Bolt, Minifix M200, M6 Drilling dimension B: 34 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.28.642

  Product Title: Connecting Bolt, Minifix® M200, M6, Drilling dimension B: 34 mm

  Category: Connecting Bolt, Minifix® M200, M6, Drilling dimension B: 34 mm

  Item Details …

  - Thread : M6

  - Thread length : 7.50 mm

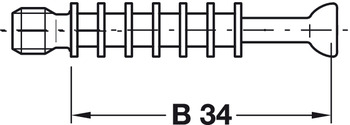

  - Drilling dim. : 34.00 mm

  - Color/finish : Zinc plated

  - Area of application : For single-sided constructions

  - Material : Steel

  - Drive : PZ2 cross slot

  - Bolt hole : 8.00 mm

  - Installation : For screwing into sleeves or dowels for installation in Ø 8 mm or Ø 10 mm holes

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.28.642, 262-28-642, 26228642, 262.28


  Specifications/Hafele Catalog - Page# FC11.33: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
