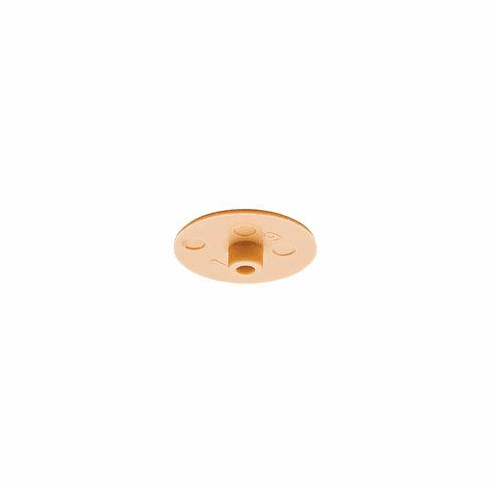

Hafele 262.24.055 Cover Cap, For Minifix From wood thickness 15 mm and above, SW4 hexagon socket, Pine

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.24.055

  Product Title: Cover Cap, For Häfele Minifix® 15 without rim, from wood thickness 15 mm, From wood thickness 15 mm and above, SW4 hexagon socket, Pine

  Category: Cover Cap, For Häfele Minifix® 15 without rim, from wood thickness 15 mm, From wood thickness 15 mm and above, SW4 hexagon socket

  Item Details …

  - Area of application : For Häfele Minifix® 15, without rim, from wood thickness 15 mm, SW4 and PZ2 hexagon socket

  - Version : With plug

  - Material : Plastic

  - For type of drive : Hexagon socket SW4

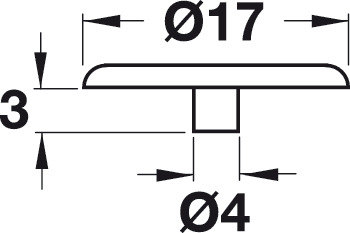

  - Head Ø : 17.00 mm

  - Head height : 1.00 mm

  - Shaft Ø : 4.00 mm

  - Shaft height : 3.00 mm

  - Installation : For clamp fixing


  Additional Information …

  The colours shown are similar to RAL colours and are as close as possible to the actual standard colours. The colour shades may vary slightly due to production reasons.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.29-11.29.pdf

  Hafele 262.24.055, 262-24-055, 26224055, 262.24


  Specifications/Hafele Catalog - Page# FC11.32: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader







  Application



  Only for SW4 hexagon socket drive



  Material



  Plastic



  For wood thickness



  16 – 29 mm
