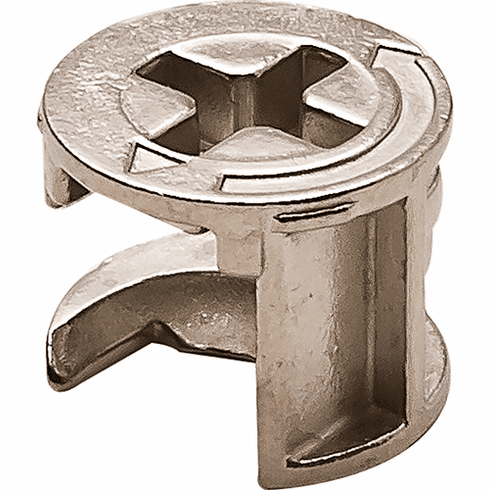

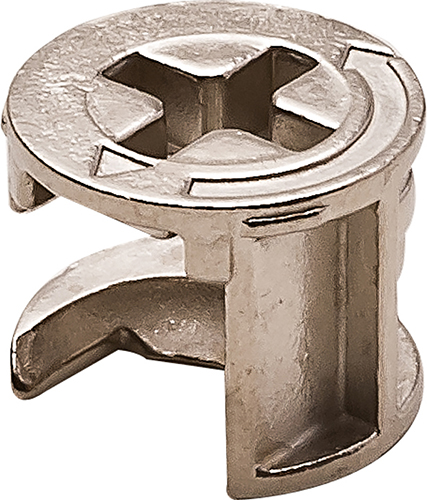

Hafele 262.17.620 Connector Housing, Minifix 12, zinc alloy, without rim Nickel-plated
Product Information
Description
Manufacturer: Hafele
Item: 262.17.620
Product Title: Connector Housing, Häfele Minifix 12, zinc alloy, without rim, Nickel-plated
Category: Connector Housing, Häfele Minifix 12, zinc alloy, without rim,
Item Details …

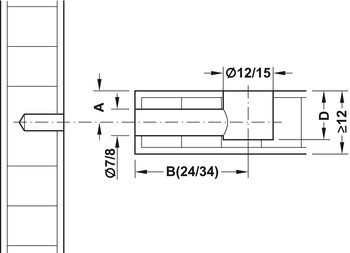

- For wood thickness : ?12 mm
- Drilling depth : 9.5 mm +0.2 mm
- Dim. A : 6.00 mm
- Drive : PZ2 cross slot, Flat blade

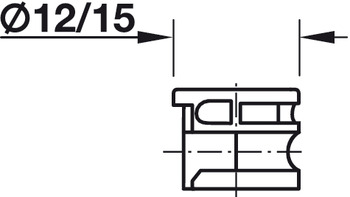

- Drill hole Ø housing : 12.00 mm
- Area of application : Can be locked only with a cross - slot screwdriver size 2
- Material : Zinc alloy
- Suitable for : All connecting bolts from the Minifix® system
Additional Information …
Depending on the choice of connecting bolt, the bolt drill hole diameter is 5, 7 or 8 mm.Data Sheet
