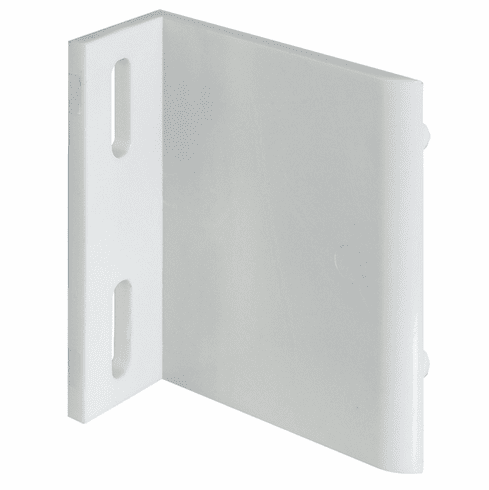

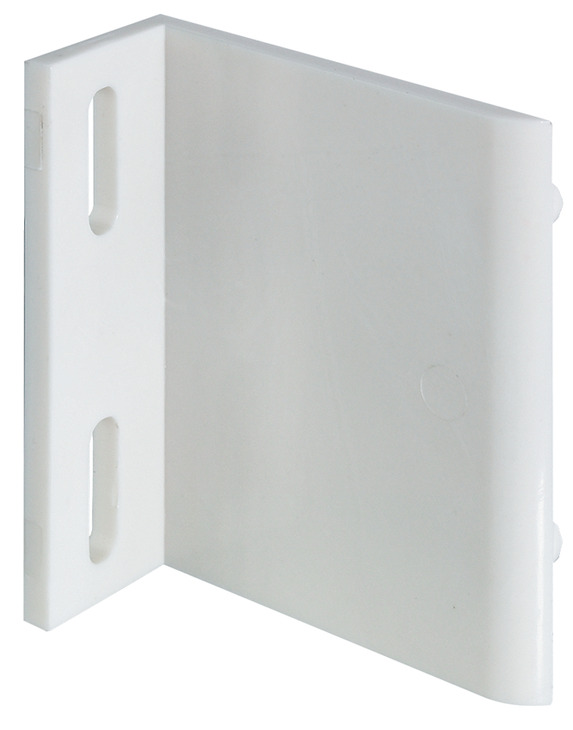

Hafele 260.12.706 Rear Panel Bracket, for 32 mm Series Holes white

Product Information

• Description

  Manufacturer: Hafele
  Item: 260.12.706

  Product Title: Rear Panel Bracket, for 32 mm Series Holes, white

  Category: Rear Panel Bracket, for 32 mm Series Holes, white

  Item Details …

  - Material : Plastic

  - Color/finish : White

  - Color/Finish cover : White

  - Screw holes : For 32 mm series holes

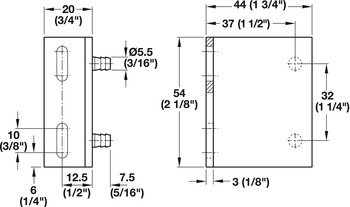

  - Leg length : 44?/?20 mm

  - Width : 54.00 mm

  - Area of application : For 32 mm series holes

  - For series drilled holes : System 32

  - Material thickness : 3.00 mm

  - Adjustment facility : via slot

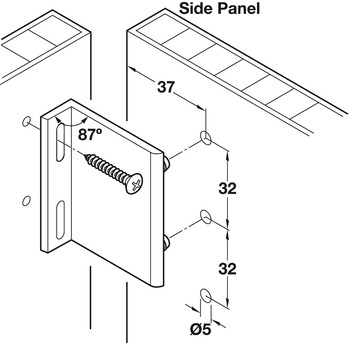

  - Installation : For press fitting into drill hole Ø 5 mm (at intervals of 32 mm), rear panel for screw fixing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.66



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.107-11.107.pdf

  Hafele 260.12.706, 260-12-706, 26012706, 260.12


  Specifications/Hafele Catalog - Page# FC11.114: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
