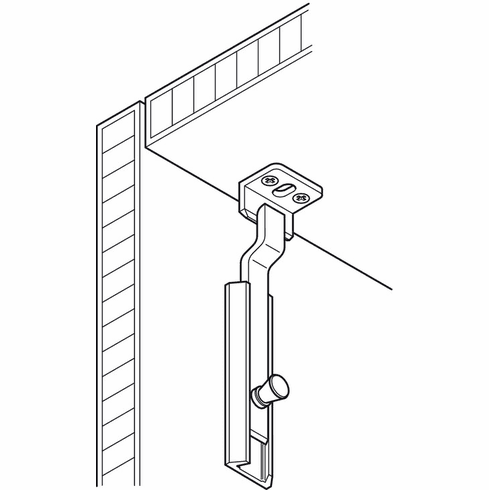

Hafele 252.02.644 Furniture Bolt, Threaded, with Straight Slide Polished chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 252.02.644

  Product Title: Furniture Bolt, Threaded, with Straight Slide, Polished chrome

  Category: Furniture Bolt, Threaded, with Straight Slide, Polished chrome

  Item Details …

  - Length : 70.00 mm

  - Travel : 11.00 mm

  - Color/finish : nickel plated

  - Version : Brass with cranked slide

  - Material : Brass

  - Shape : edged

  - Screw fixing : Concealed

  - Installation : With screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.136



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.106-11.106.pdf

  Hafele 252.02.644, 252-02-644, 25202644, 252.02


  Specifications/Hafele Catalog - Page# FC11.112: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
