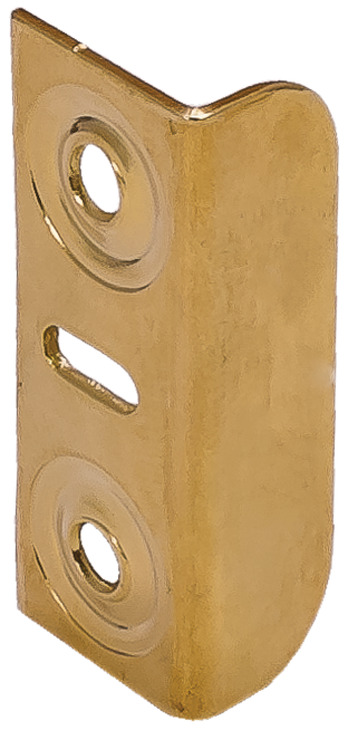

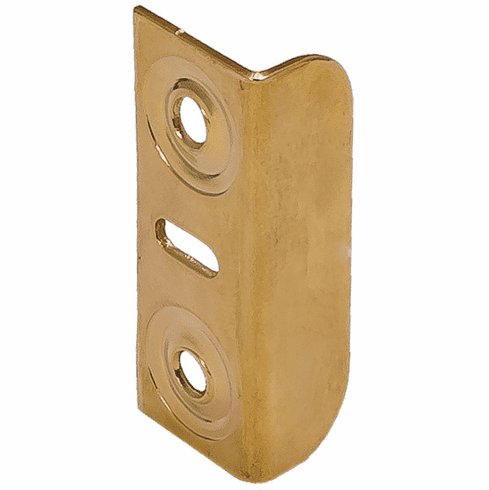

Hafele 239.40.507 Strike Plate, Steel, 33 x 12 mm Brass-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 239.40.507

  Product Title: Strike Plate, Steel, 33 x 12 mm, Brass-plated

  Category: Strike Plate, Steel, 33 x 12 mm,

  Item Details …

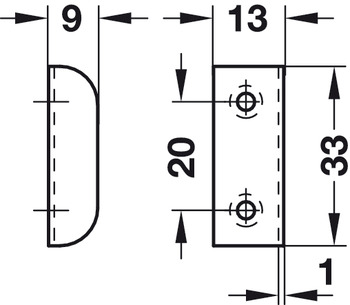

  - Length : 33.00 mm

  - Screw holes : 2 round, 1 long

  - Material : Steel

  - Width : 12.00 mm

  - Depth : 9.00 mm

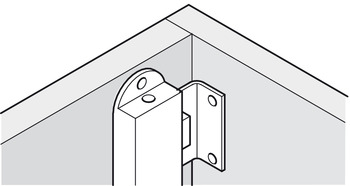

  - Installation : With screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.54



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.52-10.52.pdf

  Hafele 239.40.507, 239-40-507, 23940507, 239.40


  Specifications/Hafele Catalog - Page# FC10.53: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
