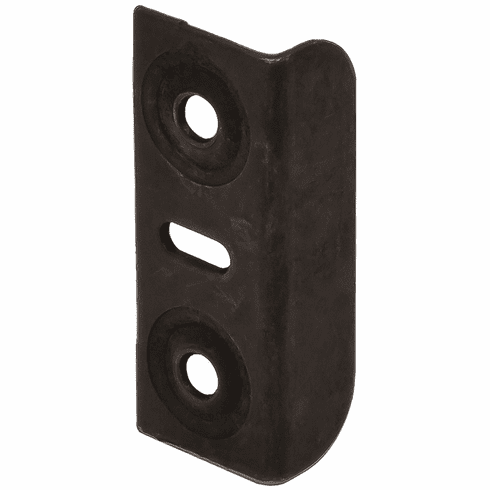

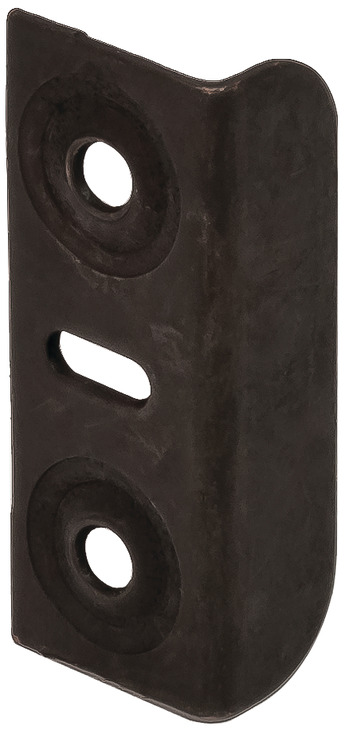

Hafele 239.40.301 Strike Plate, angled, steel, black, 33mm x 12mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 239.40.301

  Product Title: Strike Plate, Steel, 33 x 12 mm, Black

  Category: Strike Plate, Steel, 33 x 12 mm,

  Item Details …

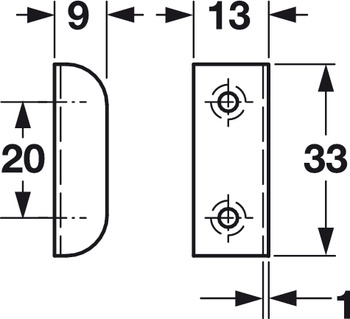

  - Length : 33.00 mm

  - Screw holes : 2 round, 1 long

  - Material : Steel

  - Width : 12.00 mm

  - Depth : 9.00 mm

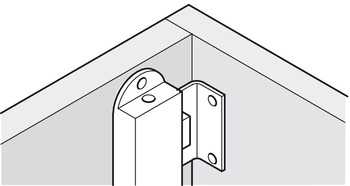

  - Installation : With screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.54



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.52-10.52.pdf

  Hafele 239.40.301, 239-40-301, 23940301, 239.40
