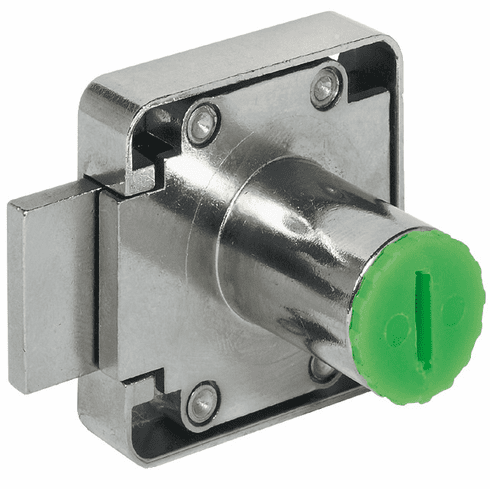

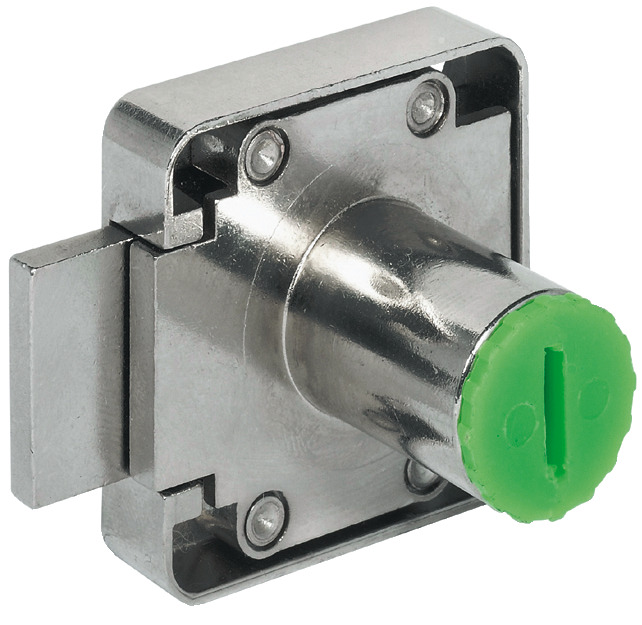

Hafele 232.25.620 Deadbolt Rim Lock, Symo, Backset 22 mm, Bolt travel 24 mm For combination with Symo cylinder removable core, Drawer version

Product Information

• Description

  Hafele 232.25.620 Deadbolt Rim Lock, Hafele Symo, Backset 22 mm, Bolt travel 24 mm
  For combination with Symo cylinder removable core, Drawer version



  Application : For cylinder cores that are inserted from the front on-site

  Mounting : Drawer version

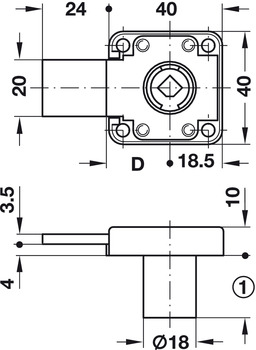

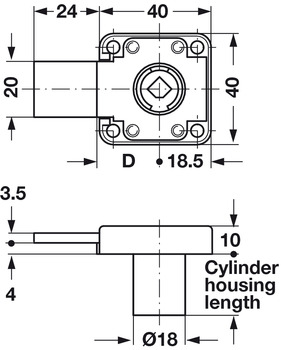

  Travel : Bolt travel: (15/16") 23 mm

  Backset : Backset D: (29/32") 23 mm

  Material : Zinc die-cast

  Finish : Nickel-plated



  Optional items:
  Hospa chipboard screws with countersunk head 3.5 mm


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.26-10.26.pdf

  Hafele 232.25.620, 232-25-620, 23225620, 232.25


  Specifications/Hafele Catalog - Page# FC10.27: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
