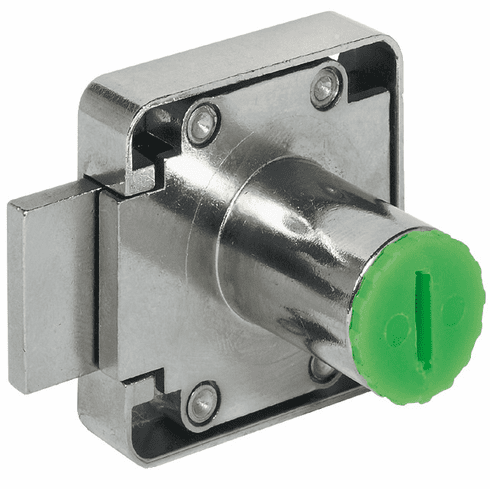

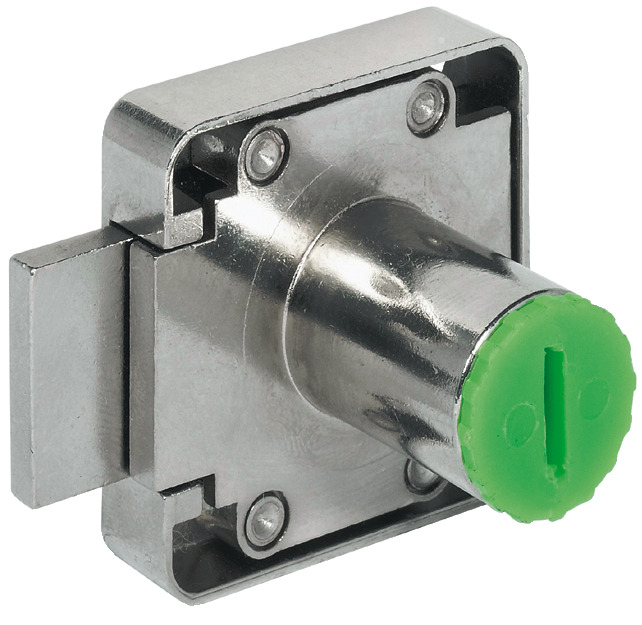

Hafele 232.25.610 Deadbolt Rim Lock, Backset 25mm (1"), Symo 3000 For combination with Symo cylinder removable core, Left hand

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.25.610

  Product Title: Deadbolt Rim Lock, Häfele Symo, backset 25 mm, bolt travel 22.5 mm, For combination with Symo cylinder removable core, Left hand

  Category: Deadbolt Rim Lock, Häfele Symo, backset 25 mm, bolt travel 22.5 mm, For combination with Symo cylinder removable core

  Item Details …

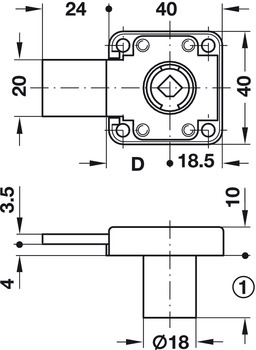

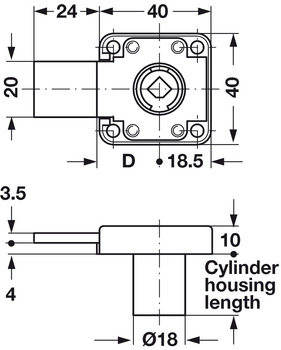

  - Material : Zinc alloy

  - Version : Long bolt travel

  - Backset (mm) : 25.00 mm

  - Color/finish : Nickel plated

  - Backset D : 25.00 mm

  - Backset D : 1"

  - Area of application : For cylinder cores that are inserted from the front on site

  - Cylinder shape : prepared for round cylinder

  - Cylinder Diameter: (mm) : 18.00 mm

  - Backset (mm) : 1"

  - Deadbolt throw dim. : 22.50 mm

  - Installation : Left hand

  - with key : No

  - Bolt throw : 15/16"

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.26



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.26-10.26.pdf

  Hafele 232.25.610, 232-25-610, 23225610, 232.25


  Specifications/Hafele Catalog - Page# FC10.27: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lock Handle, Symo, Length 30 mm (1 3/16") (choose one):


  • For combination with Symo cylinder removable core, Right hand For combination with Symo cylinder removable core, Left hand

    229.80.610 229.80.620

    Click to order Click to order



  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
